Hyosung · Current model
Hyosung 9T: Series 9 through the wall.
Through-the-wall ATM. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandHyosung
- TypeThrough-the-wall
- StatusCurrent model
Overview
What it is and where it fits.

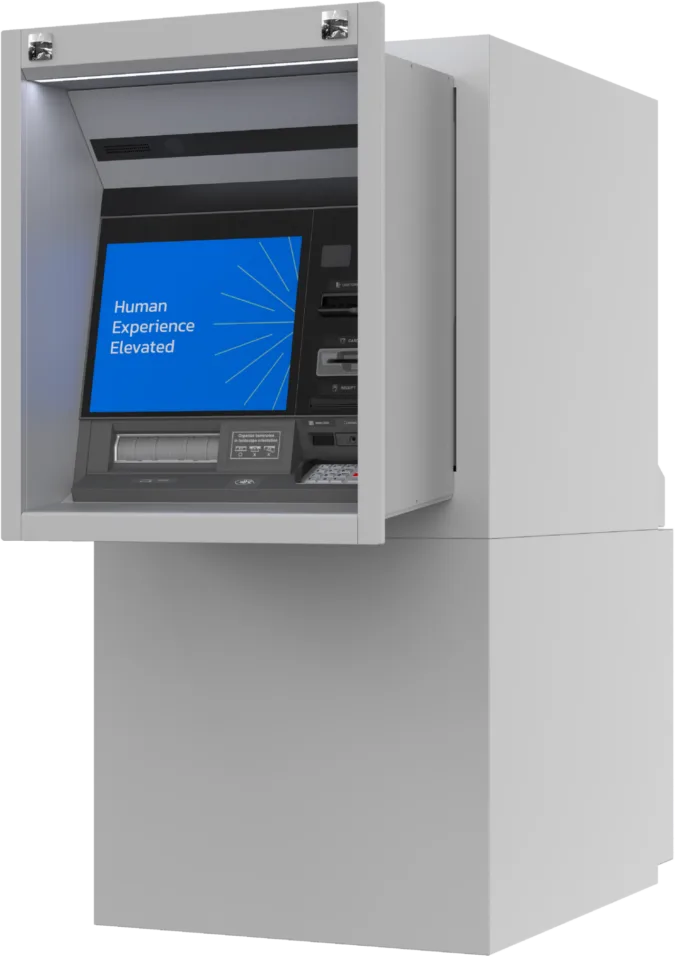

The 9T is the walk-up, through-the-wall model in Hyosung’s Series 9. Customers use it from outside the building, while staff load and service it from the rear.
It carries the Series 9 recycling module, with up to four large 3,440-note cassettes or eight split cassettes plus a deposit cassette, bundles of up to 100 notes per transaction and a check scanner for up to 30 checks. Hyosung’s transit cassette handles secure cash transfer, and the safe is rated CEN 1.
The 9T is a bank-branch machine. For a business that wants a through-the-wall ATM, Hyosung’s retail Force T is the simpler option.
Specifications
Hyosung 9T specs.
As published by Hyosung. Configurations vary by unit, so confirm the options on any specific machine.
| Screen | 19-inch landscape sunlight-viewable LCD touchscreen |
|---|---|
| Cash capacity | Up to four large recycling cassettes (3,440 notes each) or eight split ones (800 and 1,480 notes), plus a split deposit/reject cassette (2,600/500 notes); bundles of up to 100 notes |
| Check deposits | Up to 30 checks per transaction; 1,000-check deposit cassette; E13B/CMC7 OCR |
| Transit cassette | Transit cassette for secure cash transfer: large (3,440 notes) or standard (2,500 notes) |
| Operating system | Microsoft Windows 10; BlueVerse compatible |
| Card reader | Card reader and NFC reader; audio jack |
| Safe | CEN 1; seismic and heat alarm |
| Locks and security | Cencon lock; IP or CCD security camera optional |
| Servicing | Rear access; status indicators for all modules |
| Communication | TCP/IP |
| Receipt printer | 3.1-inch graphical thermal printer |
| Dimensions (H × W × D) | 62 × 30.5 × 52.9 in (1,576 × 775 × 1,343 mm) |
| Weight | 1,821 lbs (826 kg) |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Other features | Fitness sorting, built-in backup battery, heater; barcode and palm vein readers optional |
Hyosung and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Who it’s for
Made for bank and credit union branches.
Hyosung designs the Hyosung 9T for financial institutions, not for store floors, so it isn’t a machine most businesses buy.
For a store, bar or other business, a retail ATM is simpler, lighter and easier to install. You can ask us about buying one, or get one through free placement, where BayTM chooses the machine that fits your location at no cost to your business.
Before you choose it
- It needs a wall opening, a structural review and a secure service room behind it.
- At 1,821 lbs, installation is a construction project rather than a delivery.
- It is a bank-branch machine. For a store, the Force T is the retail alternative.
Your options
Buy it, or get an ATM placed free.
- I
Buy this ATM
The Hyosung 9T is available from BayTM. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement
Questions
About the Hyosung 9T.
Is the Hyosung 9T a good ATM for a business?
Usually not. Hyosung designs the 9T for bank and credit union branches. For a store, bar or other business, a retail ATM is simpler, lighter and easier to install. With BayTM’s free placement, we choose the machine that fits your location at no cost to your business. Request a location review.
How much does a Hyosung 9T cost?
Prices vary by condition and configuration (cassettes, safe, card reader and software), so we don’t publish a list price. Ask us for a quote and we’ll give you current pricing. For the full cost of owning a machine, see how much an ATM costs for a business.
9T or 8T?
Both are walk-up through-the-wall ATMs for branches. The 9T has the larger Series 9 recycling module and the transit cassette; the 8T can be bought as a dispenser, with or without deposits, and upgraded to recycling later.
9T or 5T?
The 5T is a high-capacity through-the-wall cash dispenser. The 9T is a full cash recycler that also takes cash and check deposits.
