Hyosung · Current model

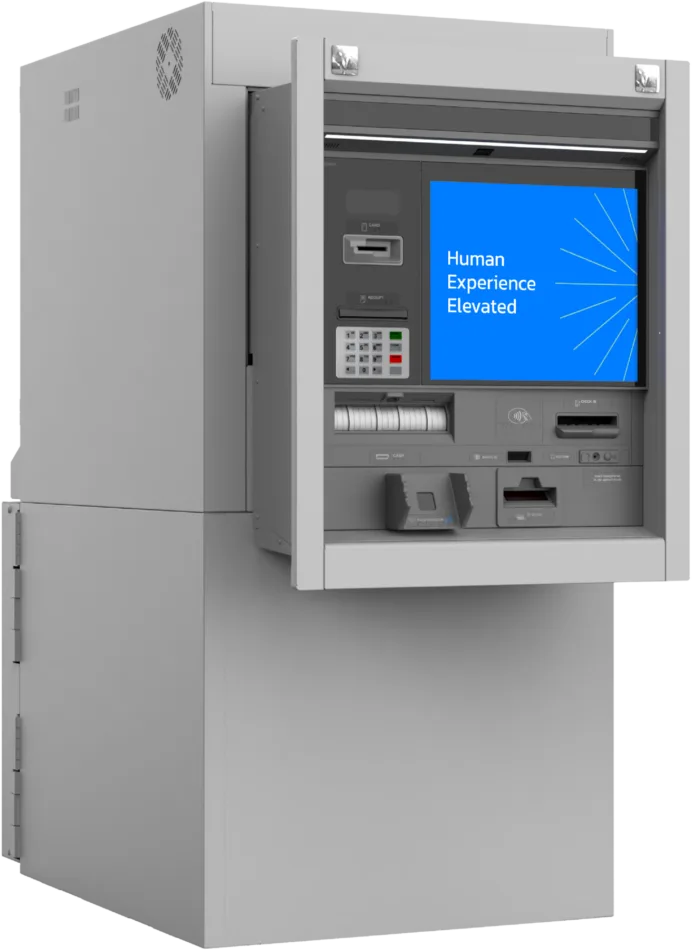

Hyosung 9D: high-capacity drive-up recycling.
Drive-up ATM. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandHyosung
- TypeDrive-up
- StatusCurrent model
Overview
What it is and where it fits.
The 9D is the drive-up model in Hyosung’s Series 9, which Hyosung calls its “most advanced, bank-grade” recycling ATM series, designed for high volumes. It is installed through the wall of a branch to serve a drive-up lane and is serviced from the rear.
Its recycling module takes up to four large cassettes of 3,440 notes or eight small ones, plus a deposit cassette, and pays out or accepts bundles of up to 100 notes per transaction. A check scanner takes up to 30 checks per transaction. Series 9 also adds Hyosung’s transit cassette, which Hyosung says loads and unloads the ATM automatically and eliminates manual cash processes in the branch.
The 9D is a machine for bank and credit union branches with a drive-up lane. Hyosung’s published weight figures for it don’t agree with each other, so we leave the weight out.
Specifications
Hyosung 9D specs.
As published by Hyosung. Configurations vary by unit, so confirm the options on any specific machine.
| Screen | 19-inch landscape sunlight-viewable LCD touchscreen |
|---|---|
| Cash capacity | Up to four large recycling cassettes (3,440 notes each) or eight small ones (800 and 1,480 notes), plus a split deposit/reject cassette (2,600/500 notes); bundles of up to 100 notes |
| Check deposits | Up to 30 checks per transaction; 1,000-check deposit cassette; E13B/CMC7 OCR |
| Transit cassette | Transit cassette for secure cash transfer: large (3,440 notes) or standard (2,500 notes) |
| Operating system | Microsoft Windows 10; BlueVerse compatible |
| Card reader | Card reader and NFC reader; audio jack |
| Safe | CEN 1; seismic and heat alarm |
| Locks and security | Cencon lock; IP or CCD security camera optional |
| Servicing | Rear access; status indicators for all modules |
| Communication | TCP/IP |
| Receipt printer | 3.1-inch graphical thermal printer |
| Dimensions (H × W × D) | 61 × 30.5 × 52 in (1,550 × 775 × 1,321 mm) |
| Operating temperature | 32°F to 104°F; 14°F to 104°F with heater |
| Other features | Fitness sorting, built-in backup battery, heater; barcode and palm vein readers optional |
Hyosung and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Who it’s for
Made for bank and credit union branches.
Hyosung designs the Hyosung 9D for financial institutions, not for store floors, so it isn’t a machine most businesses buy.
For a store, bar or other business, a retail ATM is simpler, lighter and easier to install. You can ask us about buying one, or get one through free placement, where BayTM chooses the machine that fits your location at no cost to your business.
Before you choose it
- The safe is rated CEN 1 rather than UL 291 Level 1, so confirm the rating your site requires.
- Hyosung publishes conflicting weight figures for the 9D, so get a confirmed figure before planning the wall and floor.
- Series 9 is Hyosung’s top branch series and far more machine than any retail site needs.
Your options
Buy it, or get an ATM placed free.
- I
Buy this ATM
The Hyosung 9D is available from BayTM. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement
Questions
About the Hyosung 9D.
Is the Hyosung 9D a good ATM for a business?
Usually not. Hyosung designs the 9D for bank and credit union branches. For a store, bar or other business, a retail ATM is simpler, lighter and easier to install. With BayTM’s free placement, we choose the machine that fits your location at no cost to your business. Request a location review.
How much does a Hyosung 9D cost?
Prices vary by condition and configuration (cassettes, safe, card reader and software), so we don’t publish a list price. Ask us for a quote and we’ll give you current pricing. For the full cost of owning a machine, see how much an ATM costs for a business.
What is the Series 9 transit cassette?
A removable cassette that Hyosung says lets the ATM be loaded and unloaded automatically, giving an audited cash movement across the branch and eliminating manual cash processes. Hyosung lists a large (3,440-note) and a standard (2,500-note) size.
9D or 8D?
Both are drive-up ATMs that go through a branch wall. The 9D has larger recycling capacity and the transit cassette; the 8D can be bought as a dispenser and upgraded to recycling later.
