Hyosung · Current model
Hyosung 7D: a drive-up ATM for bank branches.
Drive-up ATM. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandHyosung
- TypeDrive-up
- StatusCurrent model
Overview
What it is and where it fits.

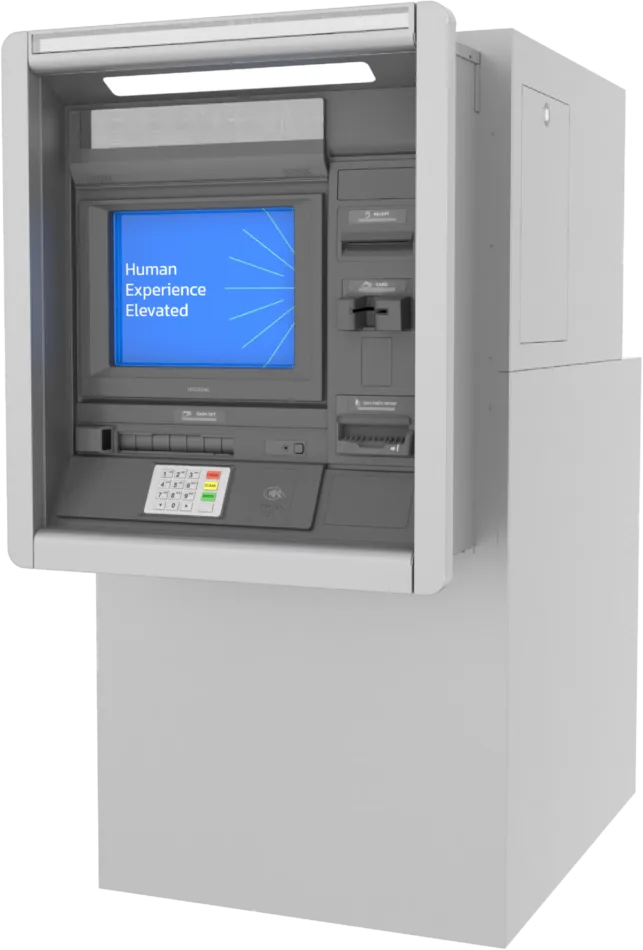

The 7D (model MX7600DA) is the drive-up member of Hyosung’s Series 7, which Hyosung calls its “most affordable, bank grade ATM series designed for moderate volumes.” It is installed through the wall of a building, facing a drive-up lane, and is loaded and serviced from the rear.
It is a full-function ATM. Besides dispensing from high-capacity 3,000-note cassettes, it can take a Cash & Check In Module that accepts mixed bundles of up to 50 notes and checks per transaction, and Hyosung says a 7D bought as a cash dispenser can be upgraded to deposit automation later. It runs Windows 10 on a 15-inch touchscreen with a privacy filter, behind a UL 291 Level 1 safe.
Hyosung designs the 7D for bank and credit union branches, so it is not a machine most businesses buy. If you want an ATM for your store, compare a retail model such as the Force, or ask about free placement.
Specifications
Hyosung 7D specs.
As published by Hyosung. Configurations vary by unit, so confirm the options on any specific machine.
| Model number | MX7600DA |
|---|---|
| Screen | 15-inch LCD touchscreen with privacy filter |
| Cash capacity | High-capacity dispense cassettes, 3,000 notes each, configurable denominations; bundle present and retract |
| Deposits | Cash & Check In Module: mixed bundles of up to 50 notes and checks per transaction; up to 2,000 notes and 2,000 checks |
| Operating system | Microsoft Windows 10 |
| Card reader | DIP, EMV compliant; integrated contactless reader (card, phone or watch) |
| PIN pad | PCI-compliant EPP; headphone jack with volume control |
| Safe | UL 291 Level 1 with seismic and heat detector |
| Locks | Electronic or mechanical combination lock; Kaba Mas Cencon optional |
| Security | IP or analog camera optional, awareness mirror, Trusted Platform Module |
| Servicing | Rear access; status indicators for all modules |
| Receipt printer | 3.1-inch graphical thermal printer |
| Dimensions | 54.4 in high × 28.4 in wide; safe 32.1 in deep, collar 11.3 in |
| Weight | 1,576.3 lbs (715 kg) |
| Operating temperature | 32°F to 104°F; 14°F to 104°F with heater |
| Other features | Backup battery for the last transaction and safe shutdown; barcode reader optional |
Hyosung and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Who it’s for
Made for bank and credit union branches.
Hyosung designs the Hyosung 7D for financial institutions, not for store floors, so it isn’t a machine most businesses buy.
For a store, bar or other business, a retail ATM is simpler, lighter and easier to install. You can ask us about buying one, or get one through free placement, where BayTM chooses the machine that fits your location at no cost to your business.
Before you choose it
- Hyosung designs it for bank and credit union branches with a drive-up lane. It is not a retail ATM.
- At about 1,576 lbs it needs a wall opening, a structural review and a secure service room behind it.
- Check and cash deposits only work with software and processing that support them, so confirm that before you buy.
- Hyosung lists different cassette counts for Series 7 in different places, so confirm the dispenser configuration on any unit you are quoted.
Your options
Buy it, or get an ATM placed free.
- I
Buy this ATM
The Hyosung 7D is available from BayTM. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement
Questions
About the Hyosung 7D.
Is the Hyosung 7D a good ATM for a business?
Usually not. Hyosung designs the 7D for bank and credit union branches. For a store, bar or other business, a retail ATM is simpler, lighter and easier to install. With BayTM’s free placement, we choose the machine that fits your location at no cost to your business. Request a location review.
How much does a Hyosung 7D cost?
Prices vary by condition and configuration (cassettes, safe, card reader and software), so we don’t publish a list price. Ask us for a quote and we’ll give you current pricing. For the full cost of owning a machine, see how much an ATM costs for a business.
Can the 7D take deposits?
Yes, with the Cash & Check In Module: Hyosung lists mixed bundles of up to 50 notes and checks per transaction. Hyosung also says a 7D bought as a cash dispenser can be upgraded to deposit automation later.
