Hyosung · Current model
Hyosung 8T: recycling, through the wall.
Through-the-wall ATM. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandHyosung
- TypeThrough-the-wall
- StatusCurrent model
Overview
What it is and where it fits.

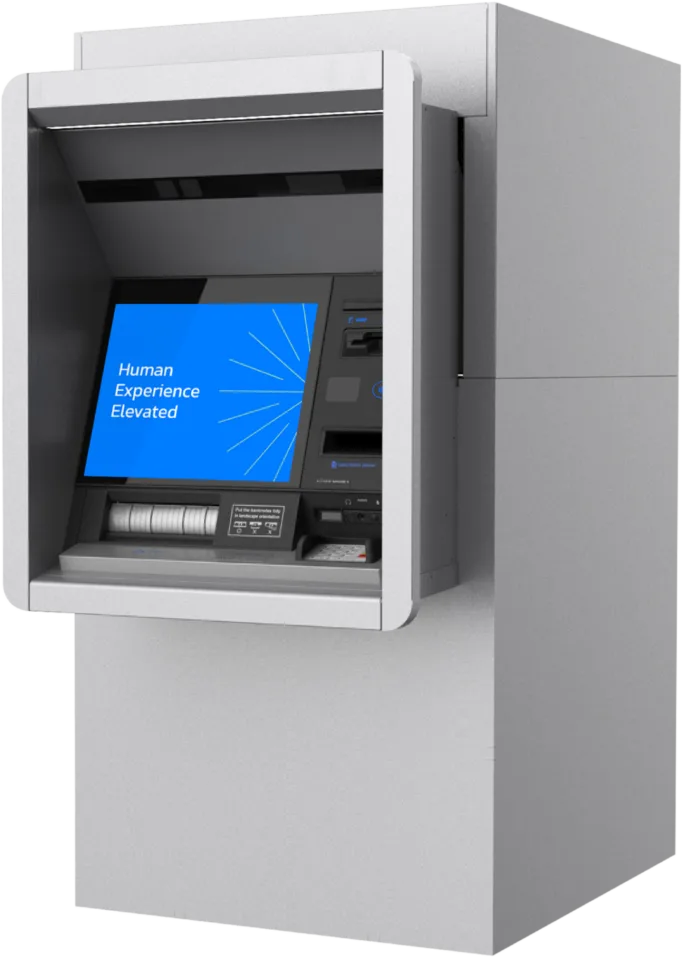

The 8T (model MX8300T) is the walk-up, through-the-wall ATM in Hyosung’s Series 8. Hyosung offers it in three configurations: cash dispensing only, cash dispensing with a cash and check deposit module, or cash recycling with check deposits. Non-recycling units can be upgraded to recycling later.
Set up for recycling, it holds four recycling cassettes of 2,950 notes plus a 2,000-note deposit cassette and handles bundles of up to 100 notes per transaction. As a dispenser, it takes 3,000-note cassettes, four high as standard or five with the five-high safe. Customers use a 19-inch sunlight-viewable touchscreen, and staff service it from the rear with a 10.1-inch supervisor panel.
Hyosung says recycling means fewer cash-in-transit visits, because customer deposits replenish the machine. The 8T is designed for bank and credit union branches; Hyosung’s retail through-the-wall model is the Force T.
Specifications
Hyosung 8T specs.
As published by Hyosung. Configurations vary by unit, so confirm the options on any specific machine.
| Model number | MX8300T |
|---|---|
| Screen | 19-inch landscape sunlight-viewable TFT LCD touchscreen |
| Cash capacity | Recycling: four 2,950-note recycling cassettes plus a 2,000-note deposit cassette. Dispense only: 3,000-note cassettes, four high (five with the five-high safe) |
| Deposits | Mixed bundles of up to 50 checks and notes per transaction; 2,000-note and 2,000-check cassettes |
| Operating system | Microsoft Windows 10; BlueVerse XFS |
| Card reader | EMV compliant; anti-skimming and anti-shimming optional; integrated contactless reader |
| PIN pad | PCI-compliant PIN pad; ADA audio guidance via earphone jack |
| Safe | UL 291 Level 1 or CEN 1; seismic and heat alarm; heater in safe |
| Locks and security | Cencon lock; face and hand camera interface; IP camera optional |
| Servicing | Rear access; 10.1-inch touchscreen supervisor panel |
| Communication | TCP/IP |
| Receipt printer | 3.1-inch graphical thermal printer |
| Dimensions (H × W × D) | 59.3 × 30.5 × 49.4 in; 10-, 13- or 15-inch wall kit |
| Weight | 1,852 lbs |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Other features | Web camera and microphone optional for video banking; backup battery; 2D barcode reader optional |
Hyosung and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Who it’s for
Made for bank and credit union branches.
Hyosung designs the Hyosung 8T for financial institutions, not for store floors, so it isn’t a machine most businesses buy.
For a store, bar or other business, a retail ATM is simpler, lighter and easier to install. You can ask us about buying one, or get one through free placement, where BayTM chooses the machine that fits your location at no cost to your business.
Before you choose it
- Choose the configuration up front: dispense only, dispense with deposits, or recycling. Hyosung says non-recycling units can be upgraded later.
- At 1,852 lbs in a wall opening, installation is a construction project.
- It is a bank-branch machine. For a store, the Force T is simpler.
Your options
Buy it, or get an ATM placed free.
- I
Buy this ATM
The Hyosung 8T is available from BayTM. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement
Questions
About the Hyosung 8T.
Is the Hyosung 8T a good ATM for a business?
Usually not. Hyosung designs the 8T for bank and credit union branches. For a store, bar or other business, a retail ATM is simpler, lighter and easier to install. With BayTM’s free placement, we choose the machine that fits your location at no cost to your business. Request a location review.
How much does a Hyosung 8T cost?
Prices vary by condition and configuration (cassettes, safe, card reader and software), so we don’t publish a list price. Ask us for a quote and we’ll give you current pricing. For the full cost of owning a machine, see how much an ATM costs for a business.
Does the 8T have to recycle cash?
No. Hyosung offers it as a cash dispenser, a dispenser with cash and check deposits, or a cash recycler with check deposits, and says the non-recycling versions can be upgraded to recycling.
8T or 8D?
They share the Series 8 platform and the same configurations. The 8T is a walk-up through-the-wall ATM; the 8D is built for a drive-up lane.
