Hyosung · Current model

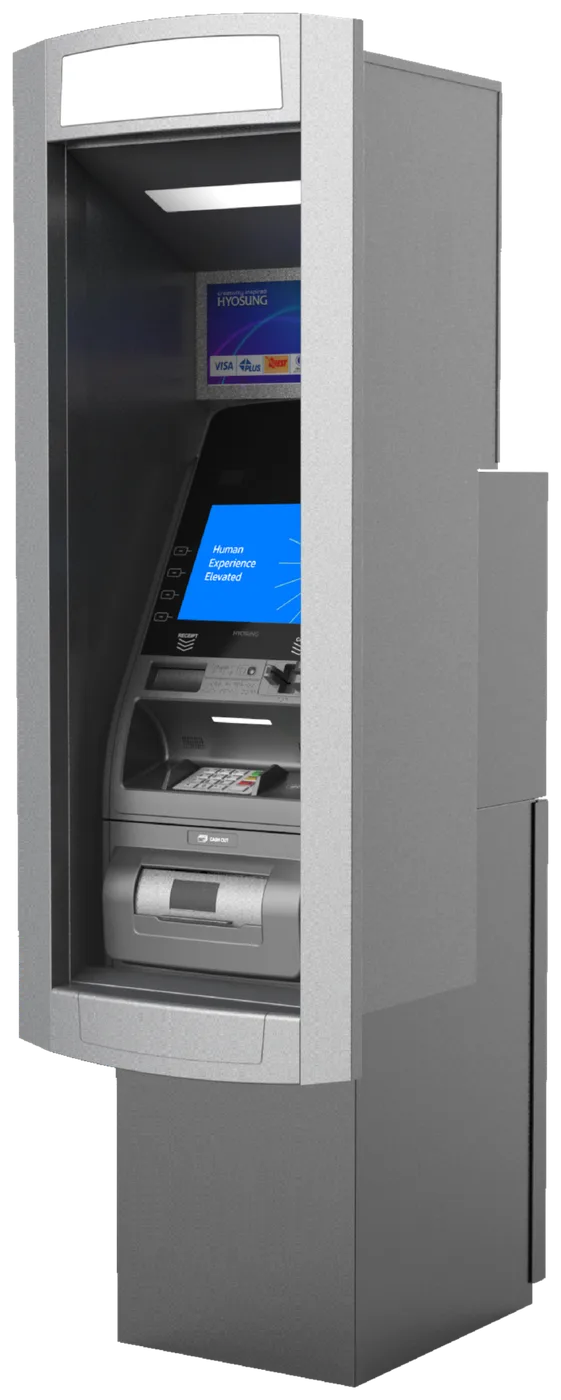

Hyosung Force T: through-the-wall, retail sized.
Through-the-wall ATM. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandHyosung
- TypeThrough-the-wall
- StatusCurrent model
Overview
What it is and where it fits.
The Force T (model MX2800T) is the through-the-wall member of Hyosung’s retail family. The customer side faces outdoors through an opening in your exterior wall, while the machine itself sits inside the building. Hyosung calls it “a sleek walk-up with rock solid reliability,” and the front is weatherized.
It has a 12.1-inch screen (1024 × 768) with tactile function keys, and holds up to three removable 2,000-note cassettes, dispensing up to 40 notes per transaction. Hyosung publishes depths for both a 3-inch and a 10-inch wall, so the thickness of your wall changes how far the unit sits back.
When Hyosung retired the 2700 series in 2019, it said a Force through-the-wall model, the 2800T, would follow. The MX2800T is that machine, and the natural upgrade from the older 2700T.
Specifications
Hyosung Force T specs.
As published by Hyosung. Configurations vary by unit, so confirm the options on any specific machine.
| Model number | MX2800T |
|---|---|
| Screen | 12.1-inch wide TFT LCD, 1024 × 768 |
| Cash capacity | Up to three 2,000-note removable cassettes; up to 40 notes per transaction |
| Operating system | Microsoft Windows CE |
| Safe | UL 291 business-hours safe; UL Level 1 option |
| Locks | Electronic lock standard; dial or Cencon lock optional |
| Communication | TCP/IP |
| Receipt printer | 80 mm graphical thermal printer |
| Dimensions | 1,828 mm high × 400 mm wide (about 72 × 15.7 in); 670 mm deep for a 3-inch wall, 848 mm for a 10-inch wall |
| Weight | 150 kg (about 331 lbs) |
| Operating temperature | 41°F to 95°F (5°C to 35°C); heater optional |
| Other features | Weatherized front, illuminated topper, braille keypad, electronic journal, digital receipt |
Hyosung and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Best for
Where it fits best.
- Gas stations
An exterior-wall ATM serves drivers and walk-up customers even when the store side is busy or closed.
- Convenience stores
Keeps the machine out of cramped aisles while staying visible from the parking lot.
- Shopping centers & strip malls
A storefront wall facing the walkway catches foot traffic from the whole center.
Before you choose it
- It needs an opening cut in an exterior wall, so you will need the building owner’s approval and some construction work.
- Without the optional heater, Hyosung lists an operating range of 41°F to 95°F, which matters in colder climates.
- Loading and service typically happen from inside the building, so you need a secure space behind the wall.
- Installation is more involved than setting a freestanding cabinet on the floor, so expect a site review first.
Your options
Buy it, or get an ATM placed free.
- I
Buy this ATM
The Hyosung Force T is available from BayTM. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement
Questions
About the Hyosung Force T.
How much does a Hyosung Force T cost?
Prices vary by condition and configuration (cassettes, safe, card reader and software), so we don’t publish a list price. Ask us for a quote and we’ll give you current pricing. For the full cost of owning a machine, see how much an ATM costs for a business.
What does “through-the-wall” mean?
The ATM is installed in an opening in an exterior wall. Customers use the screen, card reader and cash slot from outside, while the cabinet sits indoors. It suits sites where customers need access from the sidewalk or parking lot.
Can I get a through-the-wall ATM placed free?
Free placement starts with a location review. BayTM chooses the machine that fits the site, and whether a through-the-wall install makes sense depends on your building. Request a review and we’ll tell you what’s realistic.
Force T or Hero T?
The Force T is the retail model, with a 12.1-inch screen and up to three 2,000-note cassettes. The Hero T is heavier-duty, with a Level 1 safe as standard, up to four cassettes and Windows 10. The right one depends on your volume and your wall.
Get started
Not sure which machine fits? We’ll help you choose.
Tell us about your location. We’ll recommend buying, free placement or keeping the machine you have, and tell you honestly which makes sense.
$0 to your business · No obligation · We reply within one business day
Or call (510) 747-8021
