Hyosung · Current model

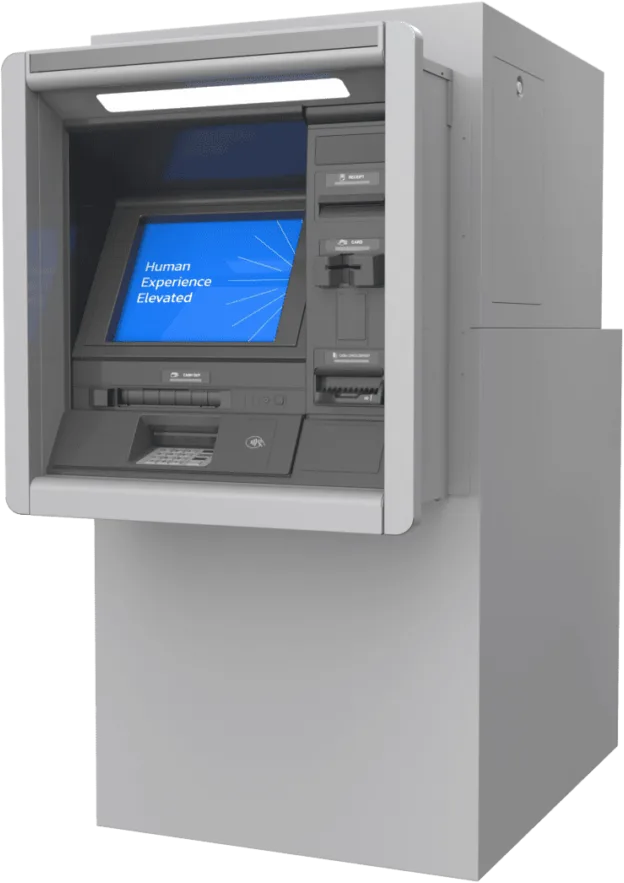

Hyosung 7T: full-function, through the wall.
Through-the-wall ATM. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandHyosung
- TypeThrough-the-wall
- StatusCurrent model
Overview
What it is and where it fits.
The 7T is the walk-up, through-the-wall model in Hyosung’s Series 7. Hyosung publishes the same cabinet dimensions as for the drive-up 7D, and it is loaded from the rear, inside the building.
Hyosung describes it as a full-function ATM that can be upgraded from a cash dispenser to deposit automation and supports large transaction volumes. It dispenses from high-capacity 3,000-note cassettes, can accept cash and checks through the Cash & Check In Module, and runs Windows 10 on a 15-inch touchscreen.
It is designed for bank and credit union branches. If you want a through-the-wall ATM for a business, Hyosung’s retail Force T is lighter and simpler to install.
Specifications
Hyosung 7T specs.
As published by Hyosung. Configurations vary by unit, so confirm the options on any specific machine.
| Screen | 15-inch LCD touchscreen with privacy filter |
|---|---|
| Cash capacity | High-capacity dispense cassettes, 3,000 notes each, configurable denominations; bundle present and retract |
| Deposits | Cash & Check In Module; up to 2,000 notes and 2,000 checks |
| Operating system | Microsoft Windows 10 |
| Card reader | DIP, EMV compliant; integrated contactless reader (card, phone or watch) |
| PIN pad | PCI-compliant EPP; headphone jack with volume control |
| Safe | UL 291 Level 1 with seismic and heat detector |
| Locks | Electronic or mechanical combination lock; Kaba Mas Cencon optional |
| Security | IP or analog camera optional, awareness mirror, Trusted Platform Module |
| Servicing | Rear load access; status indicators for all modules |
| Receipt printer | 3.1-inch graphical thermal printer |
| Dimensions | 54.4 in high × 28.4 in wide; safe 32.1 in deep, collar 11.3 in |
| Weight | 1,576.3 lbs (715 kg) |
| Operating temperature | 32°F to 104°F; 14°F to 104°F with heater |
Hyosung and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Who it’s for
Made for bank and credit union branches.
Hyosung designs the Hyosung 7T for financial institutions, not for store floors, so it isn’t a machine most businesses buy.
For a store, bar or other business, a retail ATM is simpler, lighter and easier to install. You can ask us about buying one, or get one through free placement, where BayTM chooses the machine that fits your location at no cost to your business.
Before you choose it
- It needs an opening in an exterior wall and a secure room behind it for loading and service.
- Hyosung publishes two different per-transaction limits for the deposit module on the same page, so confirm the limit on any unit you are quoted.
- It is a bank-branch machine. For a store, the Force T is the retail alternative.
Your options
Buy it, or get an ATM placed free.
- I
Buy this ATM
The Hyosung 7T is available from BayTM. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement
Questions
About the Hyosung 7T.
Is the Hyosung 7T a good ATM for a business?
Usually not. Hyosung designs the 7T for bank and credit union branches. For a store, bar or other business, a retail ATM is simpler, lighter and easier to install. With BayTM’s free placement, we choose the machine that fits your location at no cost to your business. Request a location review.
How much does a Hyosung 7T cost?
Prices vary by condition and configuration (cassettes, safe, card reader and software), so we don’t publish a list price. Ask us for a quote and we’ll give you current pricing. For the full cost of owning a machine, see how much an ATM costs for a business.
7T or Force T?
Both go through a wall. The 7T is a full-function bank-branch ATM that can take cash and check deposits, with a standard Level 1 safe. The Force T is Hyosung’s retail through-the-wall model and weighs far less.
Can the 7T take deposits?
With the Cash & Check In Module, yes. Hyosung also says Series 7 machines bought as cash dispensers can be upgraded to deposit automation later.
