Hyosung · Discontinued model
Hyosung MoniMax 5600: a bank-grade lobby ATM.
Freestanding ATM, no longer in production. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandHyosung
- TypeFreestanding
- StatusDiscontinued
Overview
What it is and where it fits.

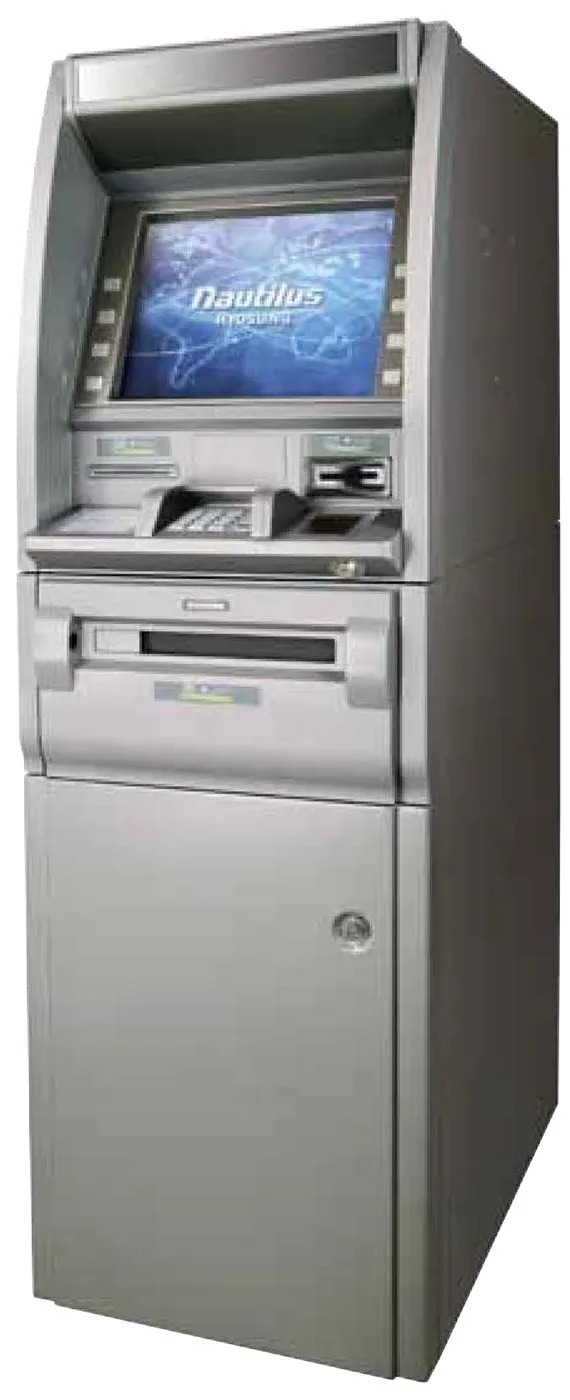

The MoniMax 5600 (MX5600, also listed as NH-5090) was Nautilus Hyosung’s bank-grade lobby cash dispenser. Hyosung described it as ideal for in-branch or off-premise deployments where reliability, security and high capacity were required, and backed it with a UL 291 Level 1 safe.
It handled four cassettes of 3,000 notes each in up to four denominations, with bundle present and retract, note-by-note rejection and an automatic shutter. The 15-inch sunlight-readable screen came with a privacy filter, and a backup battery preserved the last transaction and shut the machine down safely during a power loss.
It ran on a Windows XP platform. A January 2026 dealer bulletin named the 5L as its recommended successor.
Specifications
Hyosung MX5600 specs.
As published by Hyosung. Configurations vary by unit, so confirm the options on any specific machine.
| Model number | MX5600 (NH-5090) |
|---|---|
| Screen | 15-inch color TFT LCD, sunlight readable, privacy filter |
| Cash capacity | Up to four 3,000-note cassettes; bundle present and retract |
| Operating system | Microsoft Windows XP; NDC+ and DDC912 applications |
| Card reader | Dip hybrid, motorized hybrid or contactless; EMV Level 1 and 2; anti-skimming device |
| PIN pad and keys | PCI-compliant EPP, 8 function keys, touchscreen |
| Safe | UL 291 Level 1 |
| Locks | Mechanical combination, electronic or Kaba Mas Cencon lock |
| Communication | TCP/IP, wireless, X.25, dial-up |
| Printers | Graphical thermal receipt printer; thermal or dot journal printer |
| Dimensions (H × W × D) | 59.3 × 18.2 × 31.9 in (cabinet and safe) |
| Weight | 978 lbs |
| Operating temperature | 32°F to 104°F; −24°F to 104°F with heater |
| Available features | Backup battery, security cameras, fingerprint reader, barcode reader, vacuum fluorescent display |
Hyosung and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Where you’ll find it
Where it was a good fit.
- Casinos & card rooms
Four 3,000-note cassettes and a Level 1 safe suited very high-volume, high-security sites.
- Stadiums, arenas & concert venues
Its capacity covered event crowds without mid-event loading.
- Hotels
A lobby-style cabinet with a large screen suits a big hotel with heavy guest traffic.
Before you choose it
- It runs a Windows XP-era platform, and older operating systems can make it hard to meet current network security requirements.
- At 978 lbs, removal and replacement take professional rigging.
- Hyosung listed it with its financial (bank) ATMs rather than its retail line, so it is more machine than most single stores need.
Your options
Buy, place free, or fix the one you have.
- I
Buy this ATM
BayTM can supply a Hyosung MX5600 or a newer equivalent. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement - III
Repair or replace yours
Already have one? Tell us the model and the problem. We’ll tell you honestly whether a repair makes sense or it’s time for a newer machine.
Request ATM service
Questions
About the Hyosung MX5600.
What replaced the MoniMax 5600?
A January 2026 dealer bulletin listed the Hyosung 5L as the successor to the MX5600, and the 5T for the through-the-wall MX5600T.
Can you service a 5600?
Tell us the problem and we’ll let you know whether it’s a model we can support. See ATM repair and maintenance.
Is there a free alternative?
If your location qualifies, free placement means BayTM chooses the machine that fits your site and covers installation, cash and service at no cost to your business. Apply here.
