Hyosung · Discontinued model
Hyosung MX5300 series: high capacity, four versions.
Freestanding ATM, no longer in production. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandHyosung
- TypeFreestanding
- StatusDiscontinued
Overview
What it is and where it fits.

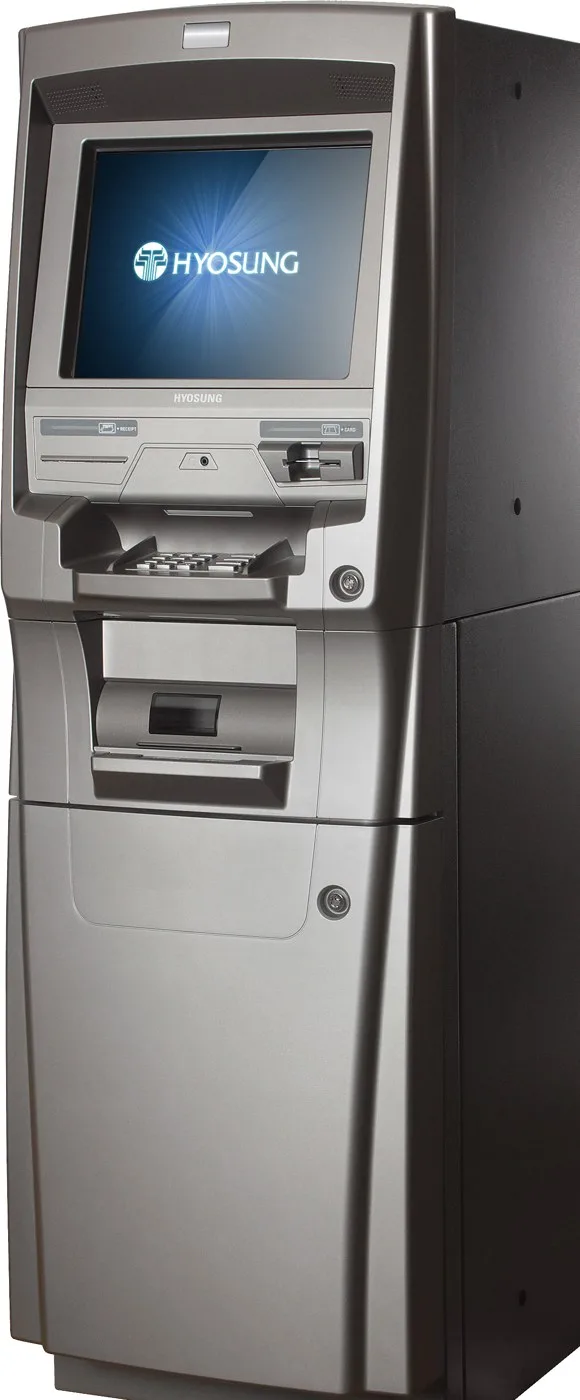

The MoniMax 5300 was Hyosung’s high-capacity, high-volume ATM for retail sites that needed bank-grade capacity. Hyosung called it a low-cost, financial-institution-grade ATM, and every version shares the same core: a 15-inch screen and room for up to four 2,000-note cassettes, 8,000 notes in all.
The versions differ mainly in software. The 5300CE ran Windows CE 5.0 and the 5300XP ran Windows 7. The 5300SE, still on Hyosung’s retail page in 2021, moved to Windows CE 6.0 and was listed as weatherized. The MX5300, also on that 2021 page, added a touchscreen and a standard Level 1 safe with a seismic and heat alarm, on Windows 7 and ready for Windows 10.
A January 2026 dealer bulletin listed the MX5300 and MX5300S/SE as discontinued, with the Hero (MX5400) as the recommended successor. Dealers also list the older NH-5300CE among obsolete models.
Specifications
Hyosung MX5300 series specs.
As published by Hyosung. Configurations vary by unit, so confirm the options on any specific machine.
| Versions | 5300CE, 5300XP, 5300SE and MX5300 |
|---|---|
| Screen | 15-inch color TFT LCD (privacy filter optional); touchscreen on the MX5300 |
| Cash capacity | Up to four 2,000-note cassettes (8,000 notes) |
| Operating system | 5300CE: Windows CE 5.0. 5300XP: Windows 7. 5300SE: Windows CE 6.0. MX5300: Windows 7, Windows 10 ready |
| Card reader | Dip-type reader, IC optional; MX5300: DIP hybrid, EMV Level 1 and 2, anti-skimming |
| PIN pad and keys | PCI encrypting PIN pad, 4 × 2 function keys; ADA compliant |
| Safe | UL 291 business-hours with Level 1 option; MX5300: UL 291 Level 1 with seismic and heat alarm |
| Communication | TCP/IP with SSL, dial-up (MX5300: TCP/IP) |
| Dimensions (H × W × D) | 54.4 × 18.1 × 25.4 in (5300CE, 5300SE); 55 × 18.1 × 25.4 in (MX5300) |
| Weight | 617 lbs (5300CE, 5300SE, MX5300) |
| Other features | Optional camera, topper and retractable door handle; 5300SE listed as weatherized |
Hyosung and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Where you’ll find it
Where it was a good fit.
- Casinos & card rooms
Four cassettes and a Level 1 safe option matched high-volume gaming sites.
- Grocery stores
Large stores with heavy weekend traffic could go longer between loads.
- Stadiums, arenas & concert venues
A big screen and 8,000-note capacity suited event crowds.
Before you choose it
- At 617 lbs, moving or replacing one takes planning.
- Compliance depends heavily on the version: the older CE 5.0 and Windows 7 builds are the hardest to keep current.
- Dealers list the NH-5300CE as obsolete; later versions may still be serviceable. Ask us about a specific unit.
Your options
Buy, place free, or fix the one you have.
- I
Buy this ATM
BayTM can supply a Hyosung MX5300 series or a newer equivalent. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement - III
Repair or replace yours
Already have one? Tell us the model and the problem. We’ll tell you honestly whether a repair makes sense or it’s time for a newer machine.
Request ATM service
Questions
About the Hyosung MX5300 series.
What are the differences between the 5300CE, 5300XP, 5300SE and MX5300?
Mostly the software and safe. The CE ran Windows CE 5.0, the XP ran Windows 7, the SE ran Windows CE 6.0, and the MX5300 added a touchscreen and a standard Level 1 safe with a seismic and heat alarm. All have a 15-inch screen and up to four 2,000-note cassettes.
What replaced the MX5300?
A January 2026 dealer bulletin named the Hero (MX5400) as the recommended successor.
Can you service my 5300?
Tell us the version, the symptom and any error code through our repair service. We’ll tell you whether a repair or a replacement makes more sense.
Could I get a free ATM instead?
Yes, if your location qualifies. With free placement, BayTM chooses the machine that suits your site and covers installation, cash and service. Apply here.
