Hyosung · Current model
Hyosung Hero: big screen, big capacity.
Freestanding ATM. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandHyosung
- TypeFreestanding
- StatusCurrent model
Overview
What it is and where it fits.

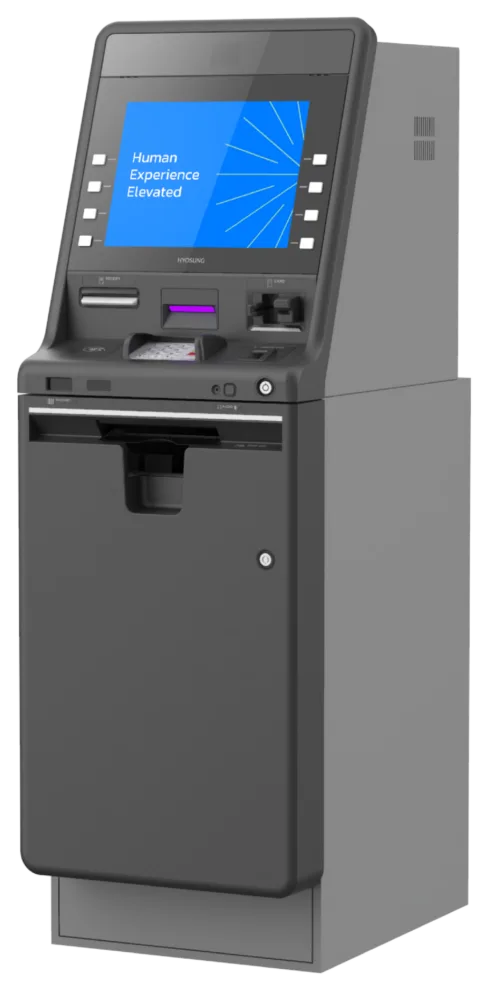

The Hero (model MX5400) is Hyosung’s high-capacity freestanding ATM for off-premise sites, sold to both retailers and financial institutions. It pairs a 15-inch “infinity” screen with a spray-type dispenser that can hold anything from one 1,000-note cassette to four 2,000-note cassettes.
It comes in two software versions: Windows CE 7.0, and Windows 10, which adds a touchscreen, denomination selection and screens you can customize. Security includes multi-level anti-skimming, a locked-down operating system, whitelisting and encryption, with a redesigned safe door and an optional UL 291 Level 1 safe.
Hyosung also added antimicrobial features, including violet-blue light on the PIN pad and cash tray. Note that a Hyosung dealer bulletin in January 2026 reported a discontinuation notice for the MX5400, with orders taken through May 31, 2026, so new units may be limited. Ask us for current pricing.
Specifications
Hyosung Hero specs.
As published by Hyosung. Configurations vary by unit, so confirm the options on any specific machine.
| Model number | MX5400 |
|---|---|
| Screen | 15-inch TFT LCD (Windows CE version) or 15-inch touchscreen (Windows 10 version) |
| Cash capacity | One 1,000-note cassette up to four 2,000-note cassettes; spray dispenser with auto-recovery |
| Operating system | Microsoft Windows CE 7.0 or Windows 10 |
| Card reader | DIP hybrid, EMV Level 1 and 2 compliant; anti-skimming optional; contactless (card, phone or watch) optional |
| PIN pad | PCI-compliant PIN pad; ADA audio guidance via earphone jack |
| Safe | UL 291 business-hours safe; UL 291 Level 1 optional |
| Locks | Electronic safe lock; Kaba Mas Cencon optional; no dial lock |
| Communication | TCP/IP; barcode reader optional |
| Receipt printer | 3.1-inch graphical thermal printer |
| Dimensions (H × W × D) | 56.7 × 17.71 × 25.2 in (1,440 × 450 × 640 mm) |
| Weight | 617 lbs (279.9 kg), as published |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Other features | USB face camera, vault light, antimicrobial UV lighting; denomination selection on Windows 10 |
Hyosung and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Best for
Where it fits best.
- Casinos & card rooms
High withdrawal volume and long hours call for four-cassette capacity and the optional Level 1 safe.
- Stadiums, arenas & concert venues
Event-day rushes favor a big, readable screen and as much cash on board as possible.
- Shopping centers & strip malls
A common-area ATM that serves many stores benefits from the capacity and the upscale cabinet.
- Hotels
The sleek dark-gray cabinet and large screen look at home in a lobby.
Before you choose it
- Hyosung publishes the weight as 617 lbs, so check floor load and delivery access before you commit.
- The Windows CE and Windows 10 versions behave differently. Decide which features you need before comparing quotes.
- A January 2026 dealer bulletin reported that Hyosung was winding down MX5400 orders, so availability of new units may be limited.
- For a single-store site with modest volume, a smaller retail model is usually simpler to own and load.
Your options
Buy it, or get an ATM placed free.
- I
Buy this ATM
The Hyosung Hero is available from BayTM. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement
Questions
About the Hyosung Hero.
How much does a Hyosung Hero cost?
Prices vary by condition and configuration (cassettes, safe, card reader and software), so we don’t publish a list price. Ask us for a quote and we’ll give you current pricing. For the full cost of owning a machine, see how much an ATM costs for a business.
Can BayTM place a Hero at my business for free?
With free placement, BayTM decides which machine suits your location after a review of your space and traffic, and covers installation, cash and service. The model depends on the site. Apply for a free placement to find out.
What’s the difference between the Windows CE and Windows 10 Hero?
Both have a 15-inch display and the same dispenser. Hyosung lists a touchscreen, denomination selection and customizable screens for the Windows 10 version, on top of the Windows CE feature set.
Is the Hyosung Hero still available?
Hyosung still lists the Hero on its website, but a dealer bulletin in January 2026 reported a discontinuation notice with orders taken through May 31, 2026. Ask us about supply before planning around a new unit.
