Hyosung · Discontinued model
Hyosung MX5000CE and 5000SE: specs and repair.
Freestanding ATM, no longer in production. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandHyosung
- TypeFreestanding
- StatusDiscontinued
Overview
What it is and where it fits.

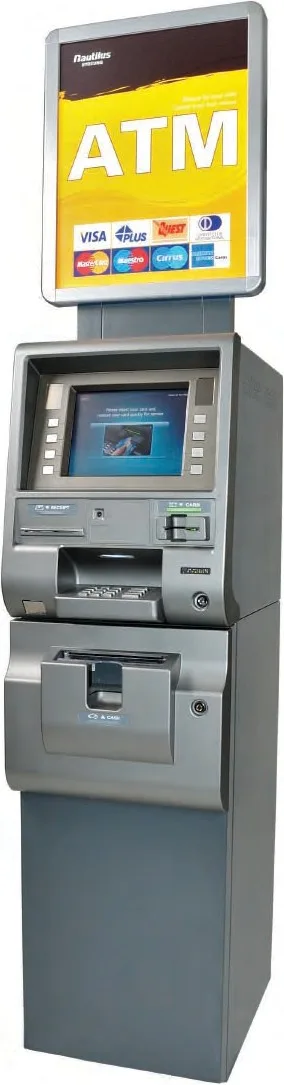

The MoniMax 5000 series sat between Hyosung’s compact retail ATMs and its bank-grade machines. Hyosung designed the MX5000CE for both on- and off-premise sites with a small footprint, and said it could work with a sidecar for bill and coin acceptance, a barcode reader for mobile top-ups, and bill payment.
The later MX5000SE kept the same 53.5-inch cabinet and 1,000- to 6,000-note capacity, ran Windows CE 6.0, had a metal key-cap PIN pad and offered an entry-level Level 1 safe. Hyosung’s parts catalog also listed a blue-cabinet 5000CE under the NH-5050 number, which is why owners sometimes search for a “Hyosung 5050.”
ATM dealers now list the NH-5000CE among obsolete models. A current Hyosung model with the same width and three-cassette capacity is the Force.
Specifications
Hyosung MX5000CE / 5000SE specs.
As published by Hyosung. Configurations vary by unit, so confirm the options on any specific machine.
| Model numbers | MX5000CE (MoniMax 5000; blue cabinet listed as NH-5050) and MX5000SE |
|---|---|
| Screen | 5000CE: 10.4-inch TFT LCD. 5000SE: 10.2-inch color TFT LCD |
| Cash capacity | One 1,000-note cassette, or up to three 2,000-note cassettes (6,000 notes) |
| Operating system | 5000CE: Windows CE (Intel XScale). 5000SE: Windows CE 6.0 |
| Card reader | Dip-type reader; IC/EMV reader optional |
| PIN pad and keys | PCI encrypting PIN pad, 4 × 2 function keys (5000SE: or touchscreen); ADA compliant |
| Safe | UL 291 business-hours; entry-level Level 1 option on the 5000SE |
| Locks | Electronic lock standard; Kaba Mas Cencon optional (S&G also optional on the 5000SE) |
| Communication | Dial-up or TCP/IP (SSL configurable) |
| Receipt printer | Graphical thermal printer (3.1-inch on the 5000CE) |
| Dimensions (H × W × D) | 53.5 × 15.7 × 24.8 in |
| Weight | 5000CE: 253.5 lbs (115 kg) |
Hyosung and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Where you’ll find it
Where it was a good fit.
- Grocery stores
Up to 6,000 notes of capacity suited steady supermarket traffic.
- Gas stations
Three cassettes and a small footprint fit a busy station store.
- Convenience stores
Its slim 15.7-inch-wide cabinet fits a small floor while carrying more cash than the compact models.
Before you choose it
- Dealers list the NH-5000CE among obsolete models that often lack modern compliance features.
- The EMV reader was optional on both versions.
- Parts availability is limited to existing stock.
Your options
Buy, place free, or fix the one you have.
- I
Buy this ATM
BayTM can supply a Hyosung MX5000CE / 5000SE or a newer equivalent. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement - III
Repair or replace yours
Already have one? Tell us the model and the problem. We’ll tell you honestly whether a repair makes sense or it’s time for a newer machine.
Request ATM service
Questions
About the Hyosung MX5000CE / 5000SE.
What’s the difference between the 5000CE and the 5000SE?
The 5000SE was the later version: Windows CE 6.0, a 10.2-inch screen, a metal key-cap PIN pad, an optional touchscreen and an entry-level Level 1 safe option. Capacity and cabinet size are the same.
What is the Hyosung 5050?
Hyosung’s parts catalog listed the blue-cabinet MX5000CE under the NH-5050 number. Specs and parts questions for a 5050 generally follow the 5000CE.
Should I repair or replace a 5000-series ATM?
For a 5000CE, replacement is usually the better choice. For a 5000SE, it depends on the card reader, keypad and software. Tell us about yours through our repair service, or skip the purchase with free placement.
Get started
Not sure which machine fits? We’ll help you choose.
Tell us about your location. We’ll recommend buying, free placement or keeping the machine you have, and tell you honestly which makes sense.
$0 to your business · No obligation · We reply within one business day
Or call (510) 747-8021
