Hyosung · Discontinued model
Hyosung 1800SE: specs, repair and replacement.
Freestanding ATM, no longer in production. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandHyosung
- TypeFreestanding
- StatusDiscontinued
Overview
What it is and where it fits.

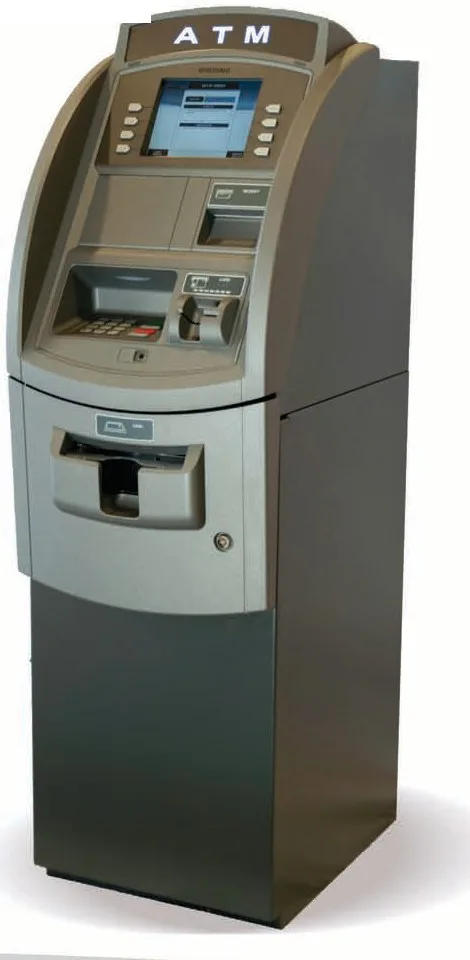

The NH-1800SE (the “Mini-Bank” 1800SE) was a later version of Nautilus Hyosung’s compact 1800 line, marketed as “the retail setting’s value leader.” The SE version brought a faster processor, a more robust lock mechanism on its UL business-hours safe and a dispenser upgrade path to 4,000 notes.
It has an 8-inch screen, 4 × 2 function keys and a dip card reader, with an EMV Level 1 and 2 compliant IC reader offered as an option. The standard setup is a single 1,000-note cassette, with an optional 2,000-note cassette that can be upgraded to two. With its topper it stands 65.3 inches tall.
Hyosung followed it with the Halo and then the Halo II, which ATM dealers now name as the 1800SE’s replacement.
Specifications
Hyosung 1800SE specs.
As published by Hyosung. Configurations vary by unit, so confirm the options on any specific machine.
| Model number | NH-1800SE |
|---|---|
| Screen | 8-inch TFT LCD |
| Cash capacity | 1,000-note removable cassette; optional 2,000-note cassette, upgradable to two (4,000 notes) |
| Operating system | Microsoft Windows CE |
| Card reader | Dip-type reader; IC reader optional (EMV Level 1 and 2 compliant) |
| PIN pad and keys | PCI encrypting PIN pad, 4 × 2 function keys, 4 × 4 numeric keys |
| Safe | UL business-hours safe |
| Locks | Mechanical combination lock; electronic or Kaba Mas Cencon lock optional |
| Communication | TCP/IP (SSL configurable), dial-up |
| Receipt printer | 80 mm graphical thermal printer |
| Dimensions (H × W × D) | 51.3 × 15.7 × 22.8 in (65.3 in tall with topper) |
| Weight | 265 lbs |
| Operating temperature | 32°F to 104°F |
| Languages | English, Spanish, French |
Hyosung and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Where you’ll find it
Where it was a good fit.
- Convenience stores
Its small footprint suited corner stores with little floor space.
- Liquor stores
A compact machine near the counter covered cash-preferring customers without taking up shelf space.
- Restaurants
Diners who pay or tip in cash could use it without leaving, in a cabinet small enough for an entryway.
Before you choose it
- Many dealers now treat the 1800SE as end-of-life. Some list it as not meeting current network security requirements and without parts support.
- Whether a particular unit can still run depends on its card reader, keypad and software. The EMV reader was optional.
- The 8-inch screen and older platform limit on-screen promotions and newer features.
Your options
Buy, place free, or fix the one you have.
- I
Buy this ATM
BayTM can supply a Hyosung 1800SE or a newer equivalent. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement - III
Repair or replace yours
Already have one? Tell us the model and the problem. We’ll tell you honestly whether a repair makes sense or it’s time for a newer machine.
Request ATM service
Questions
About the Hyosung 1800SE.
Is the Hyosung 1800SE still compliant?
Often not. Some ATM dealers now list the 1800SE as non-compliant with current U.S. network and security standards. Whether a specific unit can still run depends on its card reader, keypad and software, so tell us what yours has and we’ll give you a straight answer.
Can you repair my 1800SE?
Tell us the symptom and error code. If parts are available and the machine can meet current requirements, we’ll quote the repair. If not, we’ll say so. See ATM repair and maintenance.
What should replace a 1800SE?
The usual like-for-like replacement is the Halo II, which has a similar footprint. Or skip the purchase: with free placement, BayTM supplies, installs, loads and services a machine at no cost to your business.
How much does a Hyosung 1800SE cost?
Prices vary by condition and configuration (cassettes, safe, card reader and software), so we don’t publish a list price. Ask us for a quote and we’ll give you current pricing. For the full cost of owning a machine, see how much an ATM costs for a business.
