Hyosung · Discontinued model

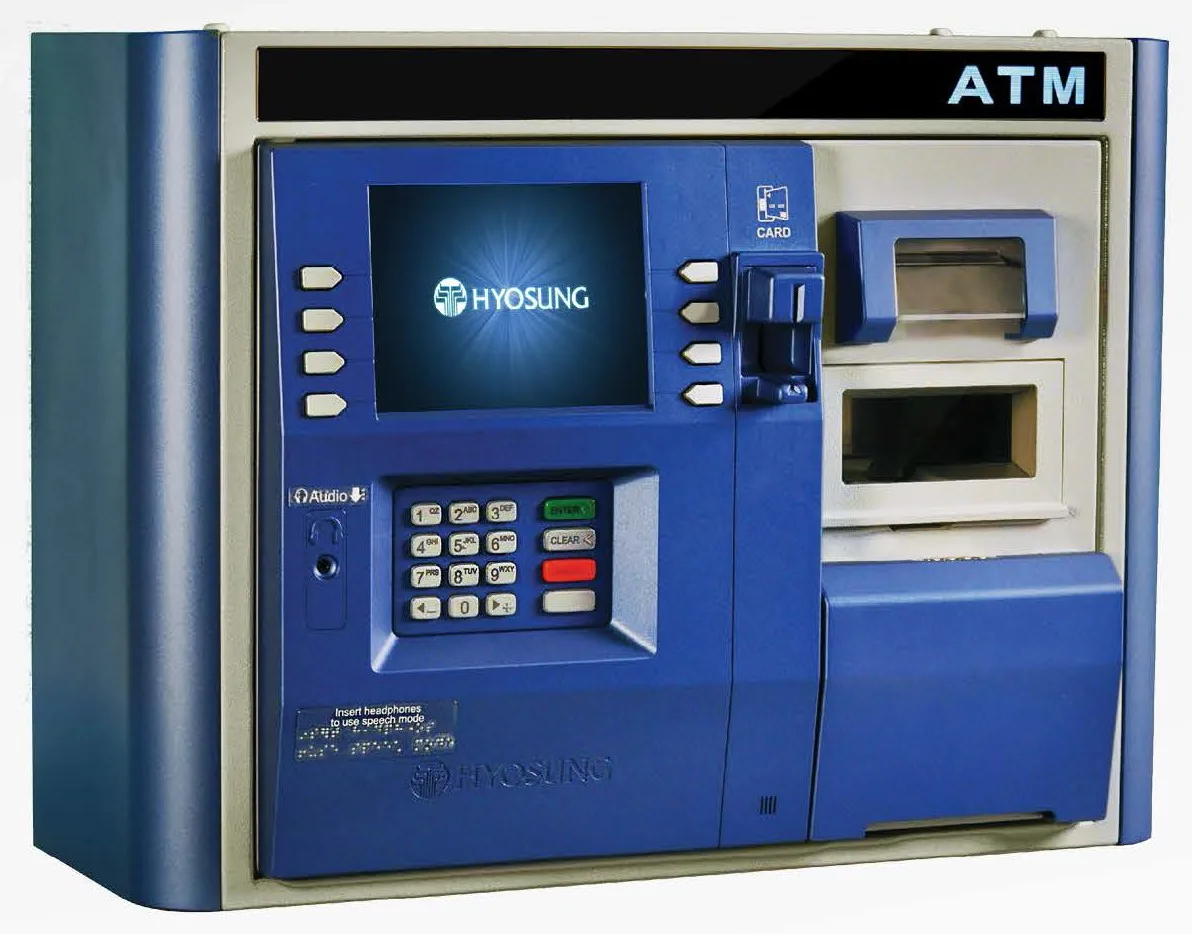

Hyosung MX4000W: the wall-mount ATM.
Wall-mount ATM, no longer in production. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandHyosung
- TypeWall-mount
- StatusDiscontinued
Overview
What it is and where it fits.
The MX4000W was Hyosung’s answer for places with almost no floor space. Nautilus Hyosung called it “proof positive that innovation comes in small packages”: a compact day-safe ATM for indoor use that mounts to a wall with the steel brackets included, or sits on a table or countertop.
Its brochure pitched it for smaller stores, coffee shops, bars and other places where space is at a premium. It is only 8.7 inches deep and weighs 110 lbs, with an 8-inch color screen, eight function keys and a 500-note removable cassette with a lit cash tray.
Hyosung still listed the 4000W on its retail page in 2021, but it is no longer part of the current lineup, which has no wall-mount model.
Specifications
Hyosung MX4000W specs.
As published by Hyosung. Configurations vary by unit, so confirm the options on any specific machine.
| Model number | MX4000W |
|---|---|
| Screen | 8-inch color TFT LCD |
| Cash capacity | 500-note removable cassette; 20-note reject box; lit cash tray |
| Operating system | Microsoft Windows CE 6.0 |
| Card reader | Dip-type reader; IC card reader and anti-skimming optional |
| PIN pad and keys | PCI-compliant EPP, 8 function keys, remote key transfer optional |
| Security | Electronic lock |
| Communication | TCP/IP, dial-up |
| Receipt printer | 2-inch graphical thermal printer |
| Dimensions (H × W × D) | 18.8 × 25.3 × 8.7 in |
| Weight | 110 lbs |
| Operating temperature | 41°F to 95°F (5°C to 35°C) |
| Mounting | Wall brackets included; table or countertop optional |
Hyosung and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Where you’ll find it
Where it was a good fit.
- Bars & nightclubs
A wall-hung ATM keeps a crowded floor clear, which is why the brochure named bars.
- Restaurants
Coffee shops and small restaurants could add cash access without giving up a table.
- Barber shops & salons
A shallow wall unit fits between stations in a small shop.
Before you choose it
- A 500-note cassette runs out sooner than a floor-standing ATM, so busy sites need frequent loading.
- It is a day-safe design for indoor use, not a UL-rated safe like freestanding models.
- Mounting height and reach matter for accessibility, so place it carefully.
- Hyosung’s current lineup has no wall-mount model, so replacement usually means a compact freestanding ATM.
Your options
Buy, place free, or fix the one you have.
- I
Buy this ATM
BayTM can supply a Hyosung MX4000W or a newer equivalent. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement - III
Repair or replace yours
Already have one? Tell us the model and the problem. We’ll tell you honestly whether a repair makes sense or it’s time for a newer machine.
Request ATM service
Questions
About the Hyosung MX4000W.
How is the MX4000W mounted?
Hyosung supplied sturdy steel brackets for wall mounting with every unit, and it could also sit on a table or countertop.
What replaces a wall-mount ATM like the 4000W?
Hyosung’s current lineup has no wall-mount model, so the usual replacement is a compact freestanding ATM such as the Halo II. Or apply for free placement and we’ll recommend what fits your space.
Can you repair my 4000W?
Tell us the problem and any error code through our repair service, and we’ll tell you honestly whether it’s worth fixing.
How much does a Hyosung MX4000W cost?
Prices vary by condition and configuration (cassettes, safe, card reader and software), so we don’t publish a list price. Ask us for a quote and we’ll give you current pricing. For the full cost of owning a machine, see how much an ATM costs for a business.
