Hyosung · Current model
Hyosung 9L: Series 9 in the lobby.
Freestanding ATM. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandHyosung
- TypeFreestanding
- StatusCurrent model
Overview
What it is and where it fits.

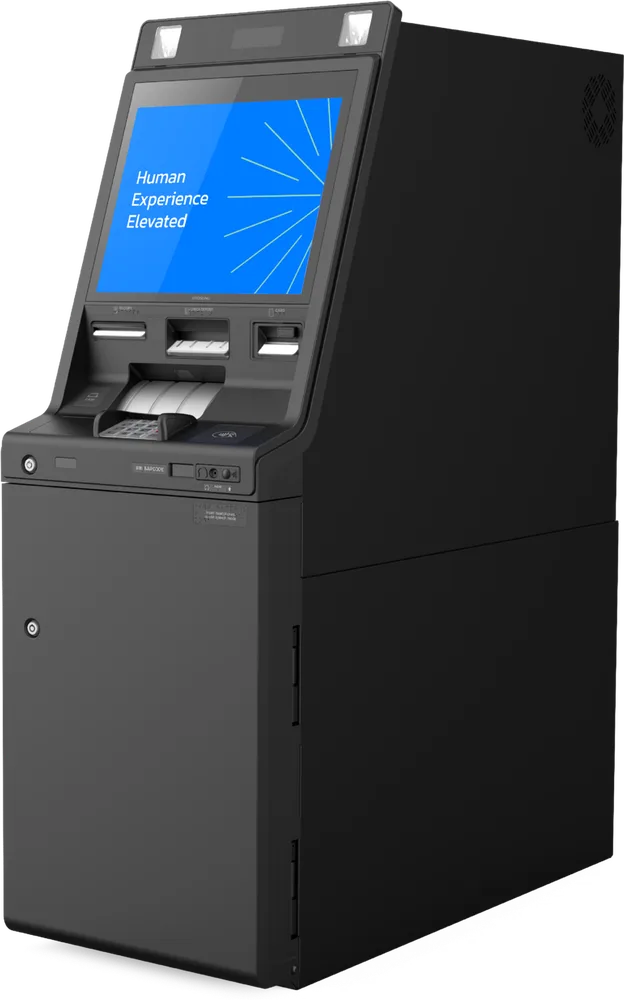

The 9L is the lobby model in Hyosung’s Series 9, the range Hyosung positions as the pinnacle of its branch technology. It is a freestanding cash recycler with a 19-inch landscape touchscreen, serviced from the front.
Hyosung lists bundles of up to 300 notes per withdrawal or deposit for the 9L, against 100 on the drive-up and through-the-wall Series 9 models, and a 400-note retract cassette. Like the rest of the series, it takes up to four large 3,440-note or eight small recycling cassettes, a deposit cassette, a check scanner for up to 30 checks and Hyosung’s transit cassette.
At 18.5 inches wide it is narrow for a bank-grade recycler, but it weighs 1,415 lbs and is designed for bank and credit union branches.
Specifications
Hyosung 9L specs.
As published by Hyosung. Configurations vary by unit, so confirm the options on any specific machine.
| Screen | 19-inch landscape LCD touchscreen |
|---|---|
| Cash capacity | Up to four large recycling cassettes (3,440 notes each) or eight small ones (800 and 1,480 notes), plus a split deposit/reject cassette (2,600/500 notes); 400-note retract cassette; bundles of up to 300 notes |
| Check deposits | Up to 30 checks per transaction; 1,000-check deposit cassette; E13B/CMC7 OCR |
| Transit cassette | Transit cassette for secure cash transfer: large (3,440 notes) or standard (2,500 notes) |
| Operating system | Microsoft Windows 10; BlueVerse compatible |
| Card reader | Card reader and NFC reader; audio jack |
| Safe | CEN 1; seismic and heat alarm |
| Locks and security | Cencon lock; IP or CCD security camera optional |
| Servicing | Front access; status indicators for all modules |
| Communication | TCP/IP |
| Receipt printer | 3.1-inch graphical thermal printer |
| Dimensions (H × W × D) | 55.9 × 18.5 × 43.1 in |
| Weight | 1,415 lbs (642 kg) |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Other features | Fitness sorting, built-in backup battery; barcode and palm vein readers optional |
Hyosung and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Who it’s for
Made for bank and credit union branches.
Hyosung designs the Hyosung 9L for financial institutions, not for store floors, so it isn’t a machine most businesses buy.
For a store, bar or other business, a retail ATM is simpler, lighter and easier to install. You can ask us about buying one, or get one through free placement, where BayTM chooses the machine that fits your location at no cost to your business.
Before you choose it
- At 1,415 lbs it needs a floor that can carry it and professional delivery.
- Recycling, check deposits and the transit cassette depend on the software and cash processes behind the machine.
- It is a bank-branch machine. Most businesses are better served by a retail ATM.
Your options
Buy it, or get an ATM placed free.
- I
Buy this ATM
The Hyosung 9L is available from BayTM. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement
Questions
About the Hyosung 9L.
Is the Hyosung 9L a good ATM for a business?
Usually not. Hyosung designs the 9L for bank and credit union branches. For a store, bar or other business, a retail ATM is simpler, lighter and easier to install. With BayTM’s free placement, we choose the machine that fits your location at no cost to your business. Request a location review.
How much does a Hyosung 9L cost?
Prices vary by condition and configuration (cassettes, safe, card reader and software), so we don’t publish a list price. Ask us for a quote and we’ll give you current pricing. For the full cost of owning a machine, see how much an ATM costs for a business.
9L or 8L?
Both are cash recycling lobby ATMs. The 8L has a 21-inch screen, four 2,950-note recycling cassettes and takes up to 10 checks per transaction. The 9L has a 19-inch screen, larger recycling capacity, up to 30 checks per transaction and the Series 9 transit cassette.
How many notes can the 9L pay out at once?
Hyosung lists bundles of up to 300 notes per withdrawal or deposit transaction for the 9L.
