Hyosung · Current model

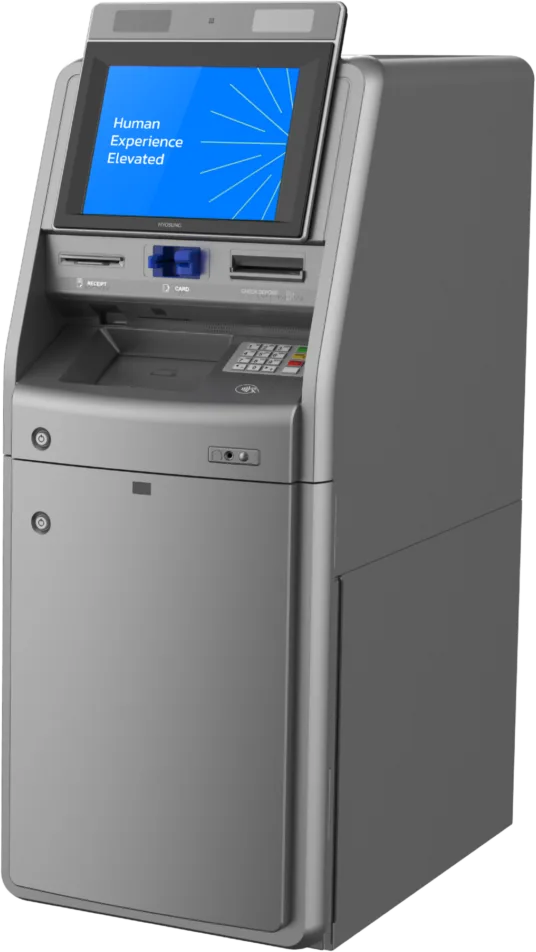

Hyosung 8LS: the smallest full-function recycler.
Freestanding ATM. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandHyosung
- TypeFreestanding
- StatusCurrent model
Overview
What it is and where it fits.
The 8LS (model MX8100QTN) is the compact lobby model in Hyosung’s Series 8, which Hyosung calls its “most flexible, bank grade ATM series.” Hyosung bills it as its “smallest footprint, full-function recycler” and says it has been a popular choice “especially where space is a premium.”
As a cash recycler, it accepts cash deposits and can pay those notes back out. It holds three recycling cassettes of 2,950 notes each, recycling up to three denominations, plus a 2,000-note deposit cassette and a check module that takes one check per transaction. It sits behind a UL 291 Level 1 safe and is serviced from the front.
Hyosung lists it as designed for branches and retail, and says its small footprint lets financial institutions offer full-function banking outside the traditional branch. It is aimed at banks and credit unions rather than store owners, so for a business that wants an ATM, a retail model is usually the practical choice.
Specifications
Hyosung 8LS specs.
As published by Hyosung. Configurations vary by unit, so confirm the options on any specific machine.
| Model number | MX8100QTN |
|---|---|
| Screen | 15-inch LCD touchscreen with privacy filter |
| Cash capacity | Three 2,950-note recycling cassettes (up to three denominations) plus a 2,000-note deposit cassette |
| Check deposits | One check per transaction; 350-check capacity |
| Operating system | Microsoft Windows 10; Hyosung BlueVerse |
| Card reader | DIP, EMV compliant, anti-skimming and anti-shimming included; integrated contactless reader |
| PIN pad | PCI-compliant EPP; headphone jack with volume control |
| Safe | UL 291 Level 1 with seismic and heat detector |
| Locks | Electronic or mechanical combination lock; Kaba Mas Cencon optional; IP or analog camera optional |
| Servicing | Front access; status indicators for all modules |
| Receipt printer | 3.1-inch graphical thermal printer |
| Dimensions (H × W × D) | 51 × 20.9 × 30.4 in (1,298 × 530 × 772 mm) |
| Weight | 934 lbs (424 kg) |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Other features | Backup battery for the last transaction and safe shutdown |
Hyosung and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Who it’s for
Made for bank and credit union branches.
Hyosung designs the Hyosung 8LS for financial institutions, not for store floors, so it isn’t a machine most businesses buy.
For a store, bar or other business, a retail ATM is simpler, lighter and easier to install. You can ask us about buying one, or get one through free placement, where BayTM chooses the machine that fits your location at no cost to your business.
Before you choose it
- Deposits and recycling only work with software and processing that support them, so confirm that before you buy.
- At 934 lbs it is far heavier than a retail ATM of similar width, so check floor load and delivery access.
- A recycler is more complex to run than a cash-only ATM.
Your options
Buy it, or get an ATM placed free.
- I
Buy this ATM
The Hyosung 8LS is available from BayTM. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement
Questions
About the Hyosung 8LS.
Is the Hyosung 8LS a good ATM for a business?
Usually not. Hyosung designs the 8LS for bank and credit union branches. For a store, bar or other business, a retail ATM is simpler, lighter and easier to install. With BayTM’s free placement, we choose the machine that fits your location at no cost to your business. Request a location review.
How much does a Hyosung 8LS cost?
Prices vary by condition and configuration (cassettes, safe, card reader and software), so we don’t publish a list price. Ask us for a quote and we’ll give you current pricing. For the full cost of owning a machine, see how much an ATM costs for a business.
What makes the 8LS different from a retail ATM?
A retail ATM only dispenses cash that someone has loaded. The 8LS is a cash recycler: it accepts cash and check deposits and can pay deposited notes back out, which Hyosung pitches to financial institutions that want full-service banking in a small space.
8LS or 4L?
Both are recyclers in a compact cabinet. The 4L is the recycler Hyosung markets to retail stores; the 8LS is its bank-grade Series 8 model, with a Level 1 safe and check deposits.
