Genmega · Current model
Genmega Onyx-W 2K: twice the cassette, same small footprint.
Wall-mount ATM. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandGenmega
- TypeWall-mount
- StatusCurrent model
Overview
What it is and where it fits.

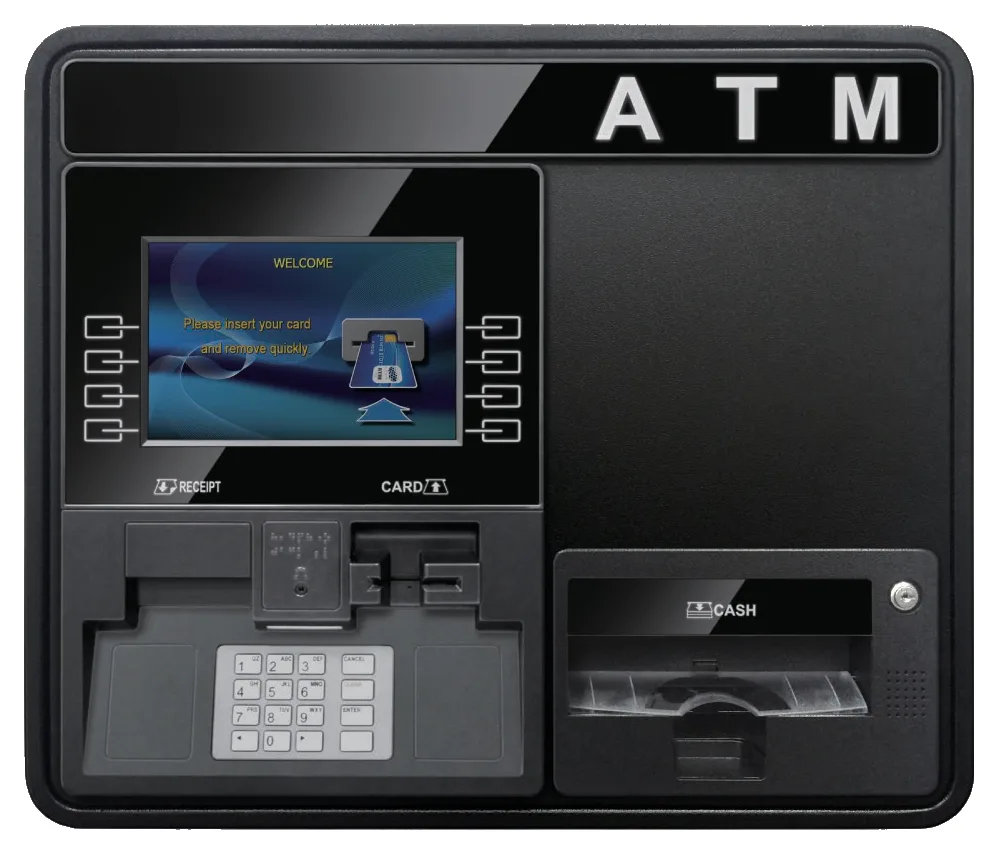

The Onyx-W 2K is the higher-capacity version of Genmega’s wall-or-counter ATM. Its dispenser takes a 2,000-note removable cassette (the WCDU 2K) instead of the standard Onyx-W’s 1,000 notes, so it can go longer between cash loads without taking up any floor.
To fit the larger cassette, the cabinet grows to about 22.4 inches tall, compared with 19.7 inches, while keeping the 26.8-inch width and 10.9-inch depth; the weight rises to about 155 lb. The 10.1-inch screen, lighted function keys, 2-inch printer, EMV reader and encrypting PIN pad are the same as on the Onyx-W.
Specifications
Genmega Onyx-W 2K specs.
As published by Genmega. Configurations vary by unit, so confirm the options on any specific machine.
| Type | Wall-mount or countertop ATM |
|---|---|
| Screen | 10.1-inch widescreen TFT LCD (1280 × 800) with 8 lighted touch function keys |
| Receipt printer | 2-inch (56 mm) |
| Card reader | EMV chip reader (DIP type) |
| PIN pad | 16-key PCI 3.0-certified encrypting PIN pad with LED illumination |
| Cash dispenser | 2,000-note removable cassette (WCDU 2K) in its own internal vault |
| Locks | Electronic, A-series or Cencon lock |
| Controller | Cortex-A9 dual-core processor, 1 GB RAM, Windows CE 7.0 |
| Connectivity | TCP/IP Ethernet with onboard SSL; 56K dial-up modem |
| Accessibility | Voice guidance, lighted transaction guidance, accessible keypad layout |
| Dimensions (H × W × D) | 22.4 × 26.8 × 10.9 in |
| Weight | 155 lb with the dispenser |
| Power | 110/220 VAC, 50/60 Hz, 145 W |
Genmega and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Best for
Where it fits best.
- Bars & nightclubs
Small bars rarely have floor to spare, and a 2,000-note cassette gives more room for a busy weekend than the 1,000-note version.
- Liquor stores
A wall install behind or beside the counter keeps aisles clear, with a larger cassette for steady daily use.
- Collectibles, trading card & comic shops
Shops that host release days or tournaments can see cash demand spike; the bigger cassette helps without adding a floor unit.
Before you choose it
- At about 155 lb it is roughly 29 lb heavier than the standard Onyx-W, so the wall or counter and the anchoring must be up to it.
- It is still a single-cassette machine; a multi-cassette floor model holds more.
- Like the Onyx-W, its published specs list an internal vault with lock options rather than a UL 291 vault, so placement matters.
- Fewer dealers list the 2K version separately, so lead times can vary; ask us for current timing.
Your options
Buy it, or get an ATM placed free.
- I
Buy this ATM
The Genmega Onyx-W 2K is available from BayTM. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement
Questions
About the Genmega Onyx-W 2K.
How much does a Genmega Onyx-W 2K cost?
Prices vary by condition and configuration. Ask us for a quote and we’ll give you current pricing.
How much bigger is the 2K than the standard Onyx-W?
Only in height and weight: about 22.4 inches tall versus 19.7 inches, and about 155 lb versus 126 lb. Width (26.8 inches) and depth (10.9 inches) are the same.
Can the Onyx-W 2K sit on a counter?
Yes. Genmega describes the Onyx-W family as installable on a wall or a countertop. Check that the counter can carry about 155 lb and allows secure anchoring.
Can I get one placed free?
With free placement, BayTM chooses the machine, installs it, keeps it loaded and services it at no cost to your business. If you need a wall or counter unit, mention it when you request a free location review.
