Genmega · Current model
Genmega GT3000: a compact through-the-wall ATM.
Through-the-wall ATM. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandGenmega
- TypeThrough-the-wall
- StatusCurrent model
Overview
What it is and where it fits.

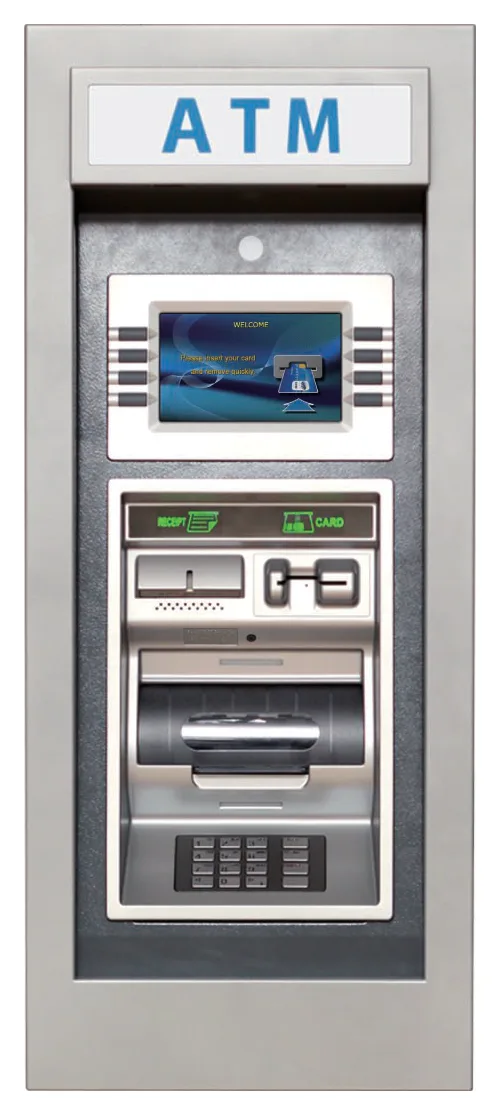

The GT3000 is Genmega’s compact through-the-wall ATM. Customers use it from one side of a wall while it is loaded and serviced from the other, and Genmega fits the features of its retail floor models into a small, weather-resistant chassis about 15 inches wide, 35.4 inches tall and 29.9 inches deep.
It has a 7-inch widescreen, a 2-inch receipt printer and a UL 291 vault, and can be ordered with an 800-note fixed cassette or a 2,000-note rear-load removable cassette. An optional rear service panel lets staff load and manage the machine from behind the wall. Because it uses existing Genmega components, service is familiar to anyone who works on Genmega retail machines.
Specifications
Genmega GT3000 specs.
As published by Genmega. Configurations vary by unit, so confirm the options on any specific machine.
| Type | Through-the-wall ATM |
|---|---|
| Screen | 7-inch widescreen color LCD (800 × 480) |
| Receipt printer | 2-inch (56 mm) |
| Card reader | DIP-type reader; EMV chip optional |
| PIN pad | 16-key PCI/Interac-certified Triple-DES encrypting PIN pad |
| Cash dispenser | 800-note fixed cassette (TCDU) or 2,000-note rear-load removable cassette |
| Rear service panel | Optional |
| Vault and locks | UL 291 business-hours vault; electronic, A-series or Kaba Mas Cencon locks |
| Controller | Cortex-A9 dual-core processor, 1 GB RAM, Windows CE 7.0 |
| Connectivity | TCP/IP Ethernet with SSL; internal dial-up modem |
| Dimensions (H × W × D) | 35.4 × 15 × 29.9 in |
| Weight | 145.6 lb with the fixed-cassette dispenser |
| Power | 110/220 VAC, 50/60 Hz, 145 W |
| Operating temperature | 45–95°F (5–35°C) |
Genmega and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Best for
Where it fits best.
- Gas stations
A through-the-wall install can serve customers from the forecourt side while it is loaded safely from inside the store.
- Parking lots & garages
A booth or office wall can host a compact machine that customers use from the walkway.
- Apartments & condos
A lobby or mailroom wall keeps the machine flush and out of the way, serviced from a back room.
- Self storage facilities
An office wall install serves tenants from the outside without taking space in the office.
Before you choose it
- Genmega lists an operating range of 45–95°F; a weather-resistant chassis is not the same as being rated for every climate, so exposed walls in hot or cold areas need shelter or another solution.
- Through-the-wall installs involve construction: a wall opening and a secure room behind it. Genmega publishes a construction guide with the measurements.
- The base 800-note fixed cassette is loaded in place; the 2,000-note rear-load removable cassette is the more flexible option.
- The 7-inch screen is the smallest in Genmega’s current lineup, and EMV is listed as optional.
Your options
Buy it, or get an ATM placed free.
- I
Buy this ATM
The Genmega GT3000 is available from BayTM. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement
Questions
About the Genmega GT3000.
How much does a Genmega GT3000 cost?
Prices vary by condition and configuration, and the dealer listings we checked disagree widely, partly because of dispenser and service-panel options. Installation also adds construction costs. Ask us for a quote.
Can the GT3000 be installed outdoors?
It is designed to face out through a wall and uses a weather-resistant chassis, but Genmega’s published operating range is 45–95°F. Sheltered spots, such as under an overhang or inside a vestibule, are the safer choice.
What does a through-the-wall install need?
A suitable wall opening, a secure space behind it for loading and service, power and a network connection. Genmega publishes a GT3000 construction guide with the dimensions a contractor needs.
Can I get a through-the-wall ATM placed free?
With free placement, BayTM chooses the machine that fits your location. If your building suits a through-the-wall install, raise it during the location review and we’ll talk through the options.
