Genmega Onyx-W: an ATM with no floor footprint.
Wall-mount ATM. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandGenmega
- TypeWall-mount
- StatusCurrent model
Overview
What it is and where it fits.

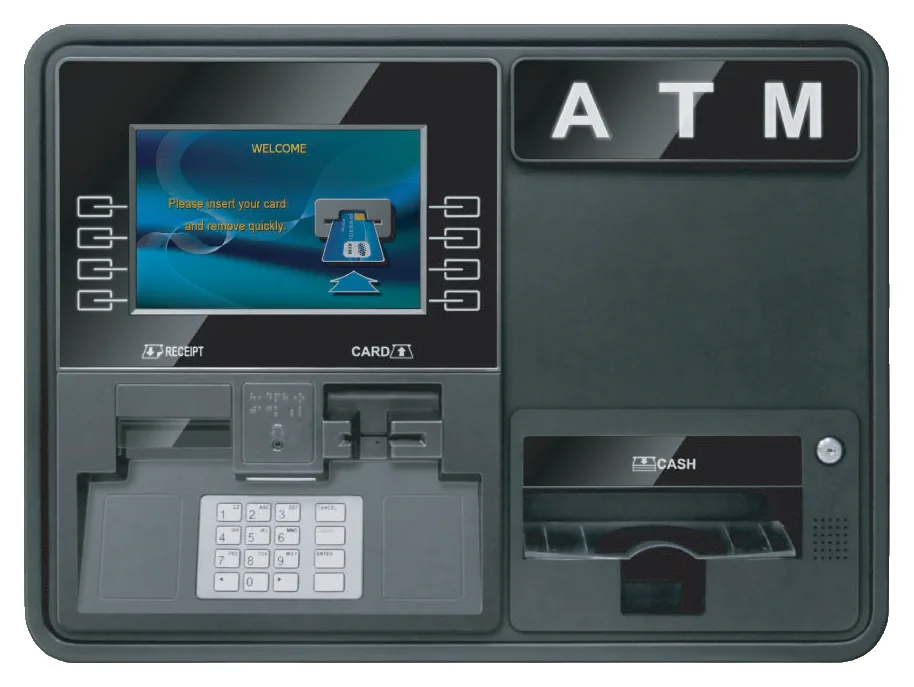

The Onyx-W is Genmega’s compact ATM for spots with no floor space to spare. It installs securely on a wall or sits on a countertop, measures about 26.8 inches wide, 19.7 inches tall and just 10.9 inches deep, and weighs roughly 126 lb with its dispenser.
It has a 10.1-inch widescreen with eight lighted touch function keys, a 2-inch receipt printer, an EMV chip reader and a PCI-certified encrypting PIN pad, and runs the same modules and software found in Genmega’s full-size machines. Cash sits in a 1,000-note removable cassette secured inside its own internal vault. For twice the cassette capacity in the same format, there is the Onyx-W 2K.
Specifications
Genmega Onyx-W specs.
As published by Genmega. Configurations vary by unit, so confirm the options on any specific machine.
| Type | Wall-mount or countertop ATM |
|---|---|
| Screen | 10.1-inch widescreen TFT LCD (1280 × 800) with 8 lighted touch function keys |
| Receipt printer | 2-inch (56 mm) |
| Card reader | EMV chip reader (DIP type) |
| PIN pad | 16-key PCI 3.0-certified encrypting PIN pad with LED illumination |
| Cash dispenser | 1,000-note removable cassette (WCDU) in its own internal vault |
| Locks | Electronic, A-series or Cencon lock |
| Controller | Cortex-A9 dual-core processor, 1 GB RAM, Windows CE 7.0 |
| Connectivity | TCP/IP Ethernet with onboard SSL; 56K dial-up modem |
| Accessibility | Voice guidance, lighted transaction guidance, accessible keypad layout |
| Dimensions (H × W × D) | 19.7 × 26.8 × 10.9 in |
| Weight | 125.9 lb with the dispenser |
| Power | 110/220 VAC, 50/60 Hz, 145 W |
Genmega and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Best for
Where it fits best.
- Nail salons & spas
Every square foot of a salon floor is working space; a wall unit near the front desk takes none of it.
- Barber shops & salons
Clients who tip in cash can get it without the shop giving up a chair’s worth of floor.
- Tattoo & piercing studios
A counter or wall install by the front desk keeps the ATM close to where cash deposits and tips change hands.
- Restaurants
Fits a host stand wall or a counter where a freestanding cabinet would block the walkway.
Before you choose it
- The single 1,000-note cassette is the only dispenser option, so a busy location runs through it faster than a multi-cassette floor model.
- Genmega’s specs describe an internal vault with electronic lock options rather than the UL 291 business-hours vault listed for its freestanding models, so the mounting surface and position matter.
- Wall mounting needs a suitable wall and proper anchoring; Genmega publishes a separate wall-mount installation guide with measurements.
- Only a 2-inch printer is listed, with no 3-inch graphics option.
Your options
Buy it, or get an ATM placed free.
- I
Buy this ATM
The Genmega Onyx-W is available from BayTM. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement
Questions
About the Genmega Onyx-W.
How much does a Genmega Onyx-W cost?
Public dealer listings in 2026 typically put a new Onyx-W at roughly $2,800 to $3,200, depending on the dealer, programming and whether a processing agreement is included. Ask us for current pricing.
Does the Onyx-W go on a wall or a counter?
Either. Genmega designed it to be installed securely as a wall mount or on a countertop. At about 126 lb it needs a wall or counter that can take the weight, anchored properly.
Onyx-W or Onyx-W 2K?
They share the screen, keypad, printer and electronics. The 2K version takes a 2,000-note cassette instead of 1,000 notes, which makes it about 2.7 inches taller and about 155 lb. Choose the 2K if you want longer between cash loads.
Can I get a wall-mount ATM placed for free?
With free placement, BayTM chooses the machine that fits your location. If floor space is the constraint, say so during the free location review and we’ll recommend what fits your wall, counter or floor.
