Genmega · Current model

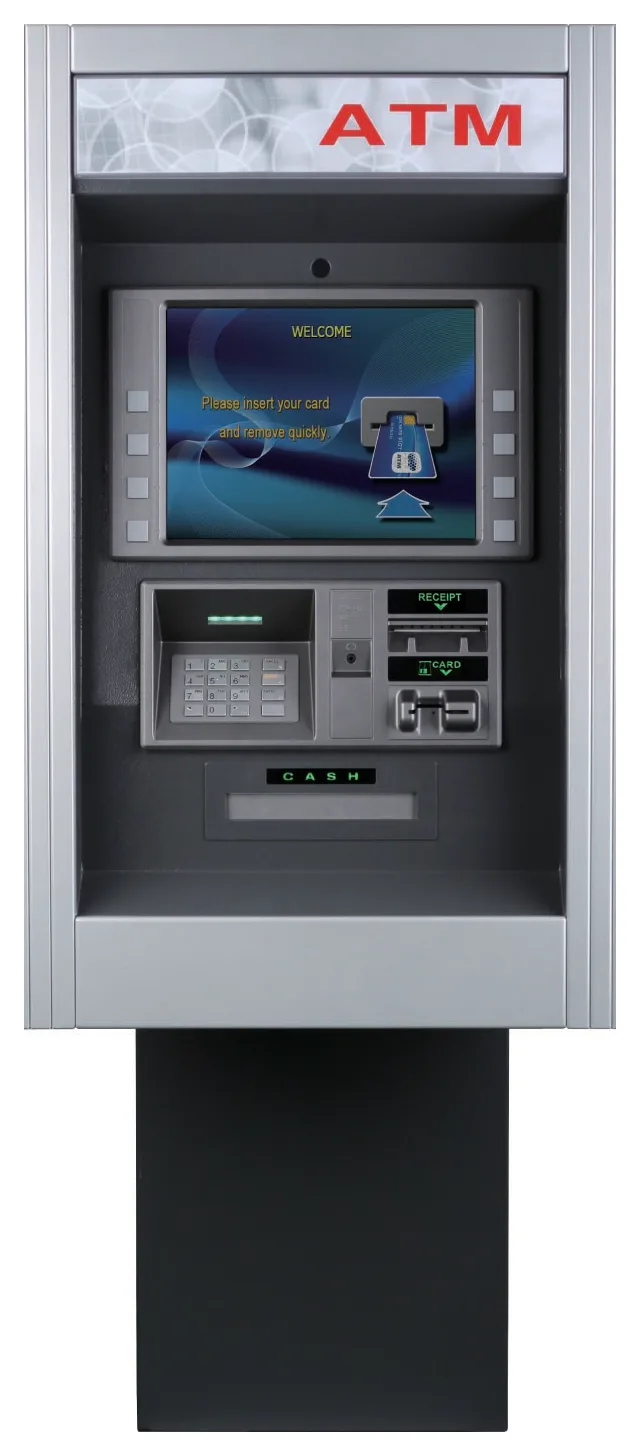

Genmega GT5000: bank-style, through the wall.
Through-the-wall ATM. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandGenmega
- TypeThrough-the-wall
- StatusCurrent model
Overview
What it is and where it fits.
The GT5000 is Genmega’s full-featured through-the-wall ATM, meant to give an exterior wall or kiosk the look and feel of a bank machine. It pairs a 15-inch high-brightness display (800 cd/m²) that supports custom advertising with a three-cassette dispenser and a motorized cash presenter.
Operators service it from behind the wall through a 7-inch touchscreen rear service panel. It has an 80 mm receipt printer, a PCI/Interac-certified encrypting PIN pad, voice guidance, lighted action indicators and a UL 291 vault. At 56.8 inches tall, 24 inches wide and 35.5 inches deep, and about 340 lb with its dispenser, it is the largest machine in Genmega’s current lineup.
Specifications
Genmega GT5000 specs.
As published by Genmega. Configurations vary by unit, so confirm the options on any specific machine.
| Type | Through-the-wall ATM with motorized presenter |
|---|---|
| Screen | 15-inch color LCD, high-bright LED backlight (800 cd/m², 1024 × 768) |
| Receipt printer | 80 mm (3-inch), 200 DPI |
| Card reader | DIP-style reader; EMV chip optional |
| PIN pad | 16-key PCI/Interac-certified Triple-DES encrypting PIN pad |
| Cash dispenser | Up to 3 × 2,000-note removable cassettes with motorized presenter |
| Rear service panel | 7-inch color touchscreen (800 × 480) |
| Vault and locks | UL 291 business-hours vault; electronic lock or Cencon (optional) |
| Controller | Cortex-A9 dual-core processor, 1 GB RAM, Windows CE 7.0 |
| Connectivity | TCP/IP Ethernet with SSL; internal dial-up modem |
| Accessibility | Voice guidance, lighted transaction guidance, accessible keypad layout |
| Dimensions (H × W × D) | 56.8 × 24 × 35.5 in |
| Weight | 340 lb with the two-cassette presenter dispenser |
| Operating environment | 40–95°F; 15–85% relative humidity, non-condensing |
| Power | 110/220 VAC, 50/60 Hz, 145 W |
Genmega and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Best for
Where it fits best.
- Truck stops & travel centers
A bank-style exterior machine with a bright screen and three cassettes for a site that sees travelers at all hours.
- Shopping centers & strip malls
An exterior wall install gives shoppers a familiar, bank-like ATM without using space inside a tenant’s store.
- College areas & student housing
A high-brightness screen and presenter suit a busy walk-up wall near campus.
- Casinos & card rooms
A wall or kiosk install with three cassettes and rear servicing for venues that want a bank-grade look.
Before you choose it
- Its published operating range is 40–95°F with non-condensing humidity, so exposed exterior walls in extreme climates still need shelter.
- This is a construction project: the machine is 24 inches wide and 56.8 inches tall, and it needs a wall opening, a secure service room behind it and planning. Genmega publishes a construction guide.
- It is one of the most expensive machines in the lineup, and the dealer prices we checked vary widely.
- The spec sheet lists EMV as optional while describing the machine as chip-card ready, so confirm the reader configuration.
Your options
Buy it, or get an ATM placed free.
- I
Buy this ATM
The Genmega GT5000 is available from BayTM. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement
Questions
About the Genmega GT5000.
How much does a Genmega GT5000 cost?
Prices vary by condition and configuration, and current dealer listings disagree widely. Installation adds construction costs on top. Ask us for a quote.
GT5000 or GT3000?
The GT3000 is compact (about 15 inches wide) with a 7-inch screen and a single cassette. The GT5000 is much larger, with a 15-inch high-brightness screen, three cassettes, a motorized presenter and a touchscreen rear service panel.
How is the GT5000 serviced?
From behind the wall. Genmega’s touchscreen rear service panel gives operators and technicians access without going to the customer side.
Can I get a GT5000 placed free?
With free placement, BayTM chooses the machine that fits the location and handles installation, cash loading and service at no cost to your business. If your building suits a through-the-wall ATM, tell us during the location review.
