Genmega · Current model
Genmega Onyx-P: Onyx styling, bank-style dispensing.
Freestanding ATM. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandGenmega
- TypeFreestanding
- StatusCurrent model
Overview
What it is and where it fits.

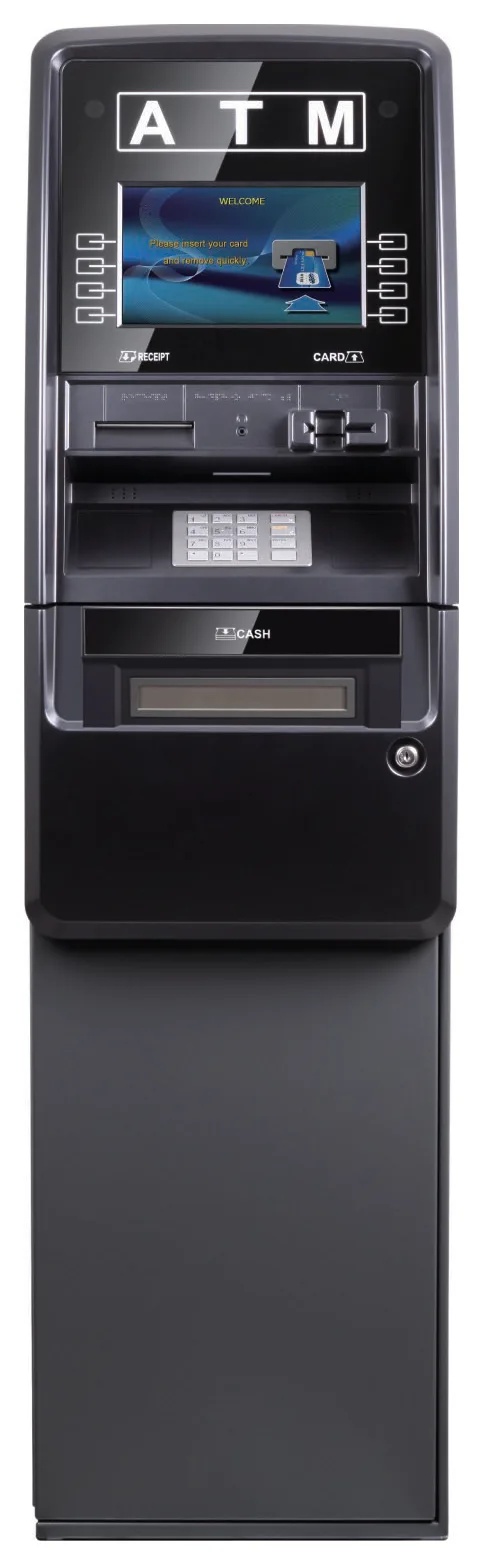

The Onyx-P adds a motorized presenter module and a high-performance cash dispenser to Genmega’s Onyx. It keeps the Onyx design: a dark cabinet, a security-reflective front with touch keypads and a 10.2-inch widescreen, with a 12-inch touchscreen as an option.
Genmega offers the presenter dispenser in single, dual and four-cassette configurations, with 1,700 or 2,000 notes per cassette, so the machine can be matched to how much cash a location goes through. The screen is ready for custom graphics and branding, an optional 3-inch printer handles receipt graphics and coupons, and the whole unit weighs about 248 lb.
Specifications
Genmega Onyx-P specs.
As published by Genmega. Configurations vary by unit, so confirm the options on any specific machine.
| Type | Freestanding retail ATM with motorized presenter |
|---|---|
| Screen | 10.2-inch widescreen color LCD (1280 × 800); 12-inch touchscreen optional |
| Front panel | Security-reflective front with touch keypads |
| Receipt printer | 2-inch (56 mm) standard; 3-inch (80 mm) graphics-capable optional |
| Card reader | DIP-type reader; EMV chip optional |
| PIN pad | 16-key PCI-certified Triple-DES encrypting PIN pad |
| Cash dispenser | High-performance presenter dispenser (HPCDU): 1, 2 or 4 cassettes of 1,700 or 2,000 notes |
| Vault and locks | UL 291 business-hours vault; electronic, A-series or Kaba Mas Cencon locks |
| Controller | Cortex-A9 dual-core processor, 1 GB RAM, Windows CE 7.0 |
| Connectivity | TCP/IP Ethernet with SSL; internal dial-up modem |
| Dimensions (H × W × D) | 56.3 × 15.8 × 22.2 in |
| Weight | 248 lb with the presenter dispenser |
| Power | 110/220 VAC, 50/60 Hz, 145 W |
| Operating temperature | 45–95°F (5–35°C) |
Genmega and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Best for
Where it fits best.
- Casinos & card rooms
Up to four presenter cassettes and a polished look for a gaming floor where guests often return for cash.
- Race tracks & off-track betting
Race days bring bursts of demand, and a multi-cassette presenter configuration is built for more volume than a single cassette.
- Entertainment venues
A sleek cabinet with bank-style dispensing suits venues that want the ATM to match the room.
Before you choose it
- About 248 lb with its dispenser, roughly 50 lb more than a single-cassette Onyx, so delivery and anchoring need planning.
- The presenter adds moving parts compared with a tray dispenser, which means more to maintain.
- Fewer dealers list the Onyx-P than the standard Onyx, so lead times can vary; ask us for current timing.
- EMV is listed as optional; confirm a chip reader is installed.
Your options
Buy it, or get an ATM placed free.
- I
Buy this ATM
The Genmega Onyx-P is available from BayTM. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement
Questions
About the Genmega Onyx-P.
How much does a Genmega Onyx-P cost?
Prices vary by condition and configuration, particularly the number and size of cassettes. Ask us for a quote and we’ll give you current pricing.
How is the Onyx-P different from the Onyx?
The Onyx-P adds a motorized presenter and a high-performance dispenser offered in one, two or four cassettes of 1,700 or 2,000 notes. The screen, front panel, printer options and vault match the Onyx.
Can it hold more cash than a standard Onyx?
Not necessarily. Both can be ordered with up to four 2,000-note cassettes. The difference is the presenter and the high-performance dispenser, not a higher maximum capacity.
Can I get an Onyx-P placed free?
With free placement, BayTM picks the machine for your location and takes care of installation, cash loading, remote monitoring and repairs at no cost to your business. Busy venues can tell us about peak nights during the location review.
