Hyosung · Discontinued model
Hyosung MoniMax 5100T: walk-up or drive-up.
Through-the-wall ATM, no longer in production. Specs, where it fits and what to ask before you buy, repair or replace one.
- BrandHyosung
- TypeThrough-the-wall
- StatusDiscontinued
Overview
What it is and where it fits.

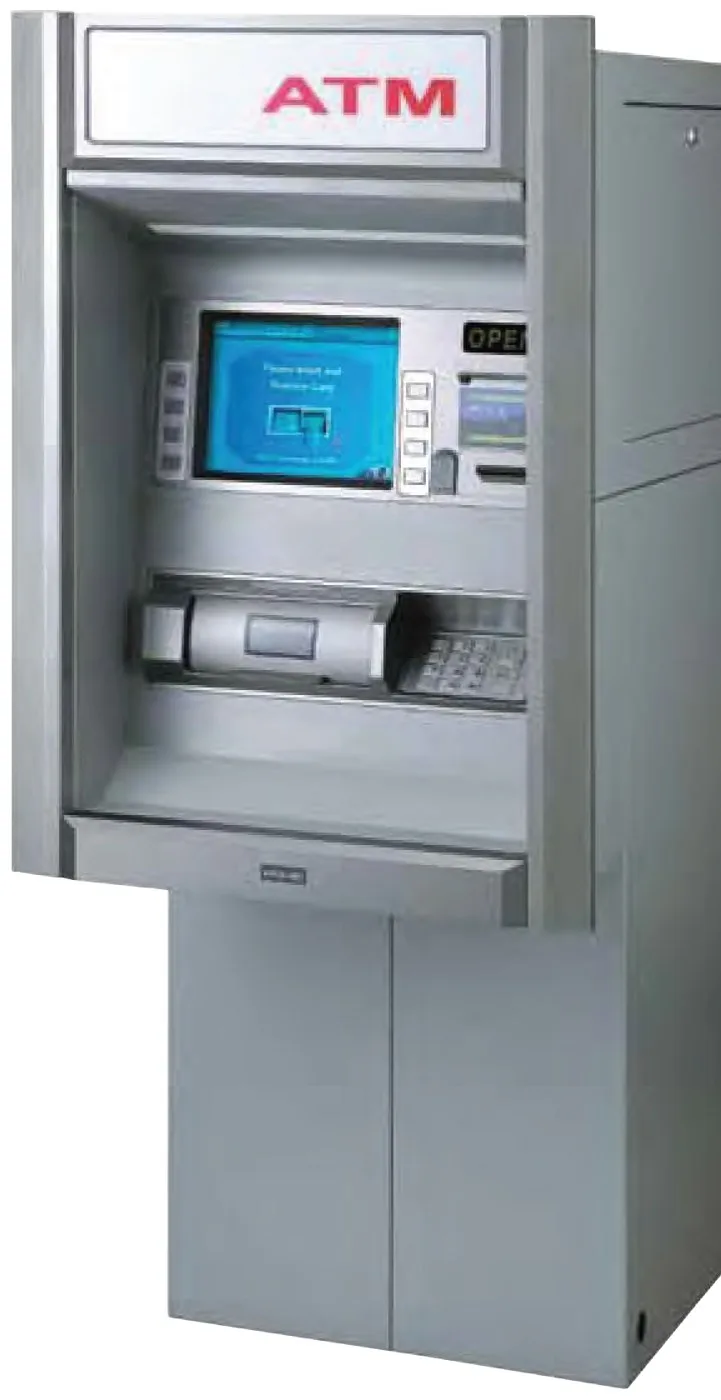

The MoniMax 5100T (MX5100T, also listed as NH-5040) was a flexible through-the-wall ATM. Hyosung offered it as a walk-up, drive-up, through-the-wall or freestanding kiosk, with a small footprint and compact design at an affordable price.
It ran on a Windows XP platform with an Intel Pentium 4 processor and a 10.4-inch screen, with a sunlight-viewable display as an option for outdoor installs. The dispenser took 2,000-note cassettes, up to four, and the safe was UL 291 business-hours with a Level 1 option.
The 5100T stayed on Hyosung’s retail page into 2021. Hyosung’s current Hero T (MX5100TA) uses the same MX5100 designation and offers the same walk-up or drive-up flexibility.
Specifications
Hyosung MX5100T specs.
As published by Hyosung. Configurations vary by unit, so confirm the options on any specific machine.
| Model number | MX5100T (NH-5040) |
|---|---|
| Screen | 10.4-inch color TFT LCD; sunlight viewable optional |
| Cash capacity | 2,000-note cassettes, up to four; note-by-note rejection |
| Operating system | Microsoft Windows XP; Intel Pentium 4 |
| Card reader | Dip-type reader; IC card reader (EMV Level 1 and 2) optional |
| PIN pad and keys | PCI encrypting PIN pad, 4 × 2 function keys, 4 × 4 numeric keys; ADA compliant; voice guidance |
| Safe | UL 291 business-hours; Level 1 optional |
| Locks | Mechanical safe lock standard; Kaba Mas Cencon, electronic or key-combo optional |
| Communication | TCP/IP or dial-up |
| Receipt printer | 3.1-inch graphical thermal printer |
| Dimensions (H × W × D) | 59.4 × 23.6 × 32.6 in |
| Weight | 441.5 lbs |
| Operating temperature | 32°F to 104°F; 14°F to 104°F optional |
Hyosung and its model names are trademarks of their respective owners. BayTM is an independent ATM company.
Where you’ll find it
Where it was a good fit.
- Gas stations
Walk-up or drive-up access through the wall suited forecourts and car lanes.
- Parking lots & garages
The drive-up option let customers get cash without leaving the car.
- Convenience stores
A through-the-wall install kept the machine off a small sales floor.
Before you choose it
- Windows XP-era software can make it hard to meet current network requirements.
- The EMV reader was optional, so check any unit you plan to keep.
- Replacement units have different dimensions, so the wall opening needs a site check.
Your options
Buy, place free, or fix the one you have.
- I
Buy this ATM
BayTM can supply a Hyosung MX5100T or a newer equivalent. Tell us about your space and traffic, and we’ll quote current pricing.
Get an equipment quote - II
Get an ATM placed free
Rather not buy? With free placement, BayTM chooses the machine that fits your location, then installs, loads and services it at no cost to your business.
Request a free placement - III
Repair or replace yours
Already have one? Tell us the model and the problem. We’ll tell you honestly whether a repair makes sense or it’s time for a newer machine.
Request ATM service
Questions
About the Hyosung MX5100T.
What is the closest current model to the MX5100T?
Hyosung’s current Hero T (MX5100TA) uses the same MX5100 designation and is also a walk-up or drive-up through-the-wall ATM, now with Windows 10 and a standard Level 1 safe.
Can you repair a 5100T?
Tell us the symptom and error code through our repair service. At this age we’ll be straight with you about whether repair is worth it.
Is a free ATM an option instead?
If your location qualifies, free placement means BayTM chooses a machine that fits your site and covers installation, cash and service. Apply here.
